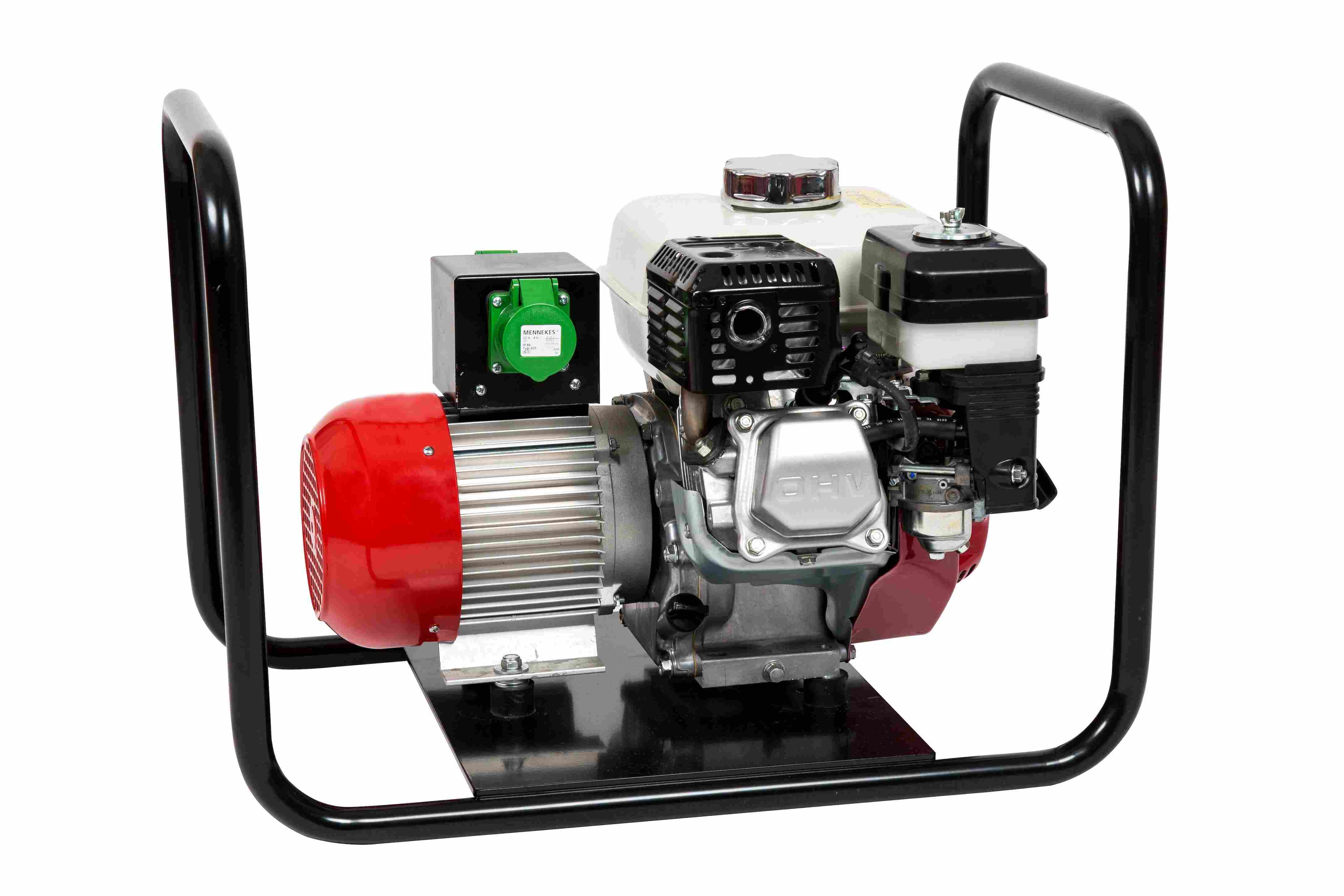

Product Highlights ELMAG HFUM 2kVA gasoline high frequency converter
PETROL HIGH FREQUENCY CONVERTER
HONDA petrol converter 42V (200 Hz) - the solution when no mains power supply is available. Very quiet running and reliable HONDA engine are the problem solver on the construction site. Joint operation with our high frequency internal vibrators. The different power consumption (A) must be observed for undisturbed and safe operation. The different connection possibilities allow flexible and fast working on the construction site. The metal protective frame protects the device for daily use on the construction site.
Technical facts ELMAG HFUM 2kVA gasoline high frequency converter
- Version with complete protective frame
- Simplest operation
- High frequency internal vibrator with thermal overload protection
- Robust design
- rubber caps (self-conversion) for high-frequency internal vibrators optionally available
- HF internal vibrators only work in conjunction with HFUM
- Other models on request
Technical data ELMAG HFUM 2kVA gasoline high frequency converter
- Power: 2 kVA
- Current rating: 21 A
- Number of outputs: 2
- Connection possibilities for HFIR 38 mm: 2
- Connection possibilities for HFIR 50 mm: 2
- Connection possibilities for HFIR 60 mm: 1
- Connection possibilities for HFIR 70 mm: -
- Engine type: Honda GX160
- Weight: 33 kg
Highest quality of ELMAG machines
Benefit from a 2-year warranty from ELMAG
Accessories for ELMAG machines on request
