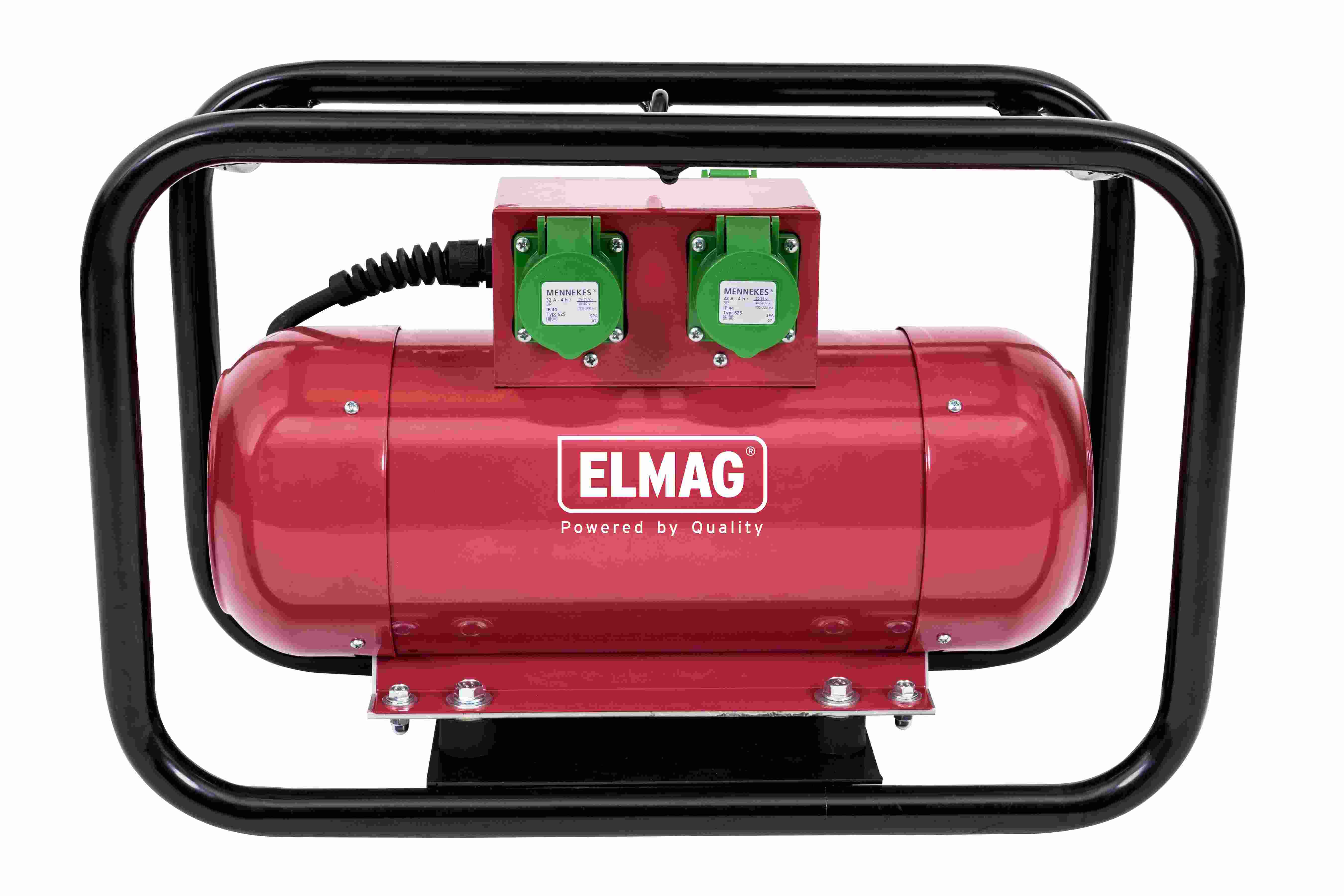

ELMAG HFUE 2.5kVA high frequency converter

HIGH-FREQUENCY CONVERTER
Frequency and voltage converter from 230 Volt (50Hz) to 42V (200 Hz). Joint operation with our high frequency internal vibrators. The different power consumptions (A) must be observed for undisturbed and safe operation. The different connection possibilities allow flexible and fast working on the construction site. The continuous metal protective frame protects the device for daily use on the construction site.

Technical facts ELMAG HFUE 2.5kVA high frequency converter​

• Version with complete protective frame
• Thermal overload protection
• Robust design
• Low maintenance
• Simplest operation
• rubber caps (self-conversion) for high-frequency internal vibrators optionally available
• HF internal vibrators only work in conjunction with HFUE
• Other models on request

Technical data ELMAG HFUE 2.5kVA high frequency converter​

• Power: 2.5 kVA
• Amperage: 35 A
• Number of outputs: 3
• Connection possibilities for HFIR 38 mm: 3
• Connection possibilities for HFIR 50 mm: 3
• Connection possibilities for HFIR 60 mm: 2
• Connection possibilities for HFIR 70 mm: 2
• Voltage - Frequency: 230/42-200 V/Hz
• Weight: 33 kg

Highest quality of ELMAG machines
Benefit from a 2-year warranty from ELMAG

Accessories for ELMAG machines on request
