ELMAG GBM 3/25 SNE gear box column drilling machine
Product highlights ELMAG GBM 3/25 SNE gear box column drill
Fast gear box drilling machines 900 / 650 W
The more often carbide and stainless steel are to be machined, the more likely it is to be a powerful gear drill - ideal also for thread cutting. Thanks to a gear-gear combination of steel and pressed material, the powerful GBM 3/25 TNE & SNE are particularly quiet in operation. With a top speed of 2,900 rpm you have an optimal cutting speed for small bores. For thread cutting, the machines are equipped with clockwise and counterclockwise rotation.
The more often carbide and stainless steel are to be machined, the more likely it is to be a powerful gear drill - ideal also for thread cutting. Thanks to a gear-gear combination of steel and pressed material, the powerful GBM 3/25 TNE & SNE are particularly quiet in operation. With a top speed of 2,900 rpm you have an optimal cutting speed for small bores. For thread cutting, the machines are equipped with clockwise and counterclockwise rotation.
Technical facts ELMAG GBM 3/25 SNE gear box column drill
- Drilling capacity Ø 25 mm
- Cubature 290x250x580 mm
- Spindle throat depth 255 mm
- Powerful drive motor 400 V, 2-stage 900 / 650 W
- Smooth running quality gear with high loadable helical gearing
- 8 speeds 105 - 2,900 rpm
- Drilling spindle with precision bearing
- Right and left rotation
- Drill spindle protection cover
- Drilling depth scale and stop

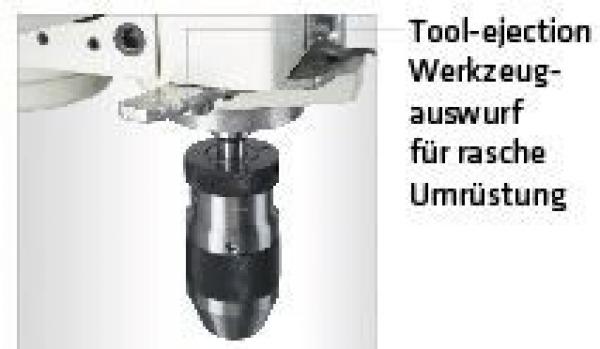

- Tool ejection
- Precisely machined drilling table with T-slots and coolant trough
- Rotatable and height-adjustable drill head
- Heavy-duty, ground steel column with gear rack
- Emergency stop button
- Zero voltage release
- Standard equipment:
- Keyless drill chuck B 16, 1 - 16 mm- Taper arbor MK 3
- B 16- Reducing sleeve MK 3
- MK 2- Reducing sleeve MK 3
- MK 1- Drift wedge operating instructions
- CE
Technical data ELMAG GBM 3/25 SNE gear box column drill
- drilling capacity in steel: 25mm
- Thread cutting capacity: M16
- Spindle mount (turning spindle): MK 3
- Speed range: 105 - 2900UpM
- Speed steps: 8
- quill stroke: 120mm
- Sleeve feed stages: -
- torque: 0N-m
- column diameter: 100mm
- drill head stroke: 580mm
- drilling table stroke: 530mm
- spindle throat depth: 255mm
- Drilling table turnable: ± 180
- Drill head rotatable: ± 180
- quill distance table min./max.: 0 - 840mm
- Drilling table surface: 500 x 350mm
- drilling table height: 0mm
- Motor power: (2-stage) 900 / 650W
- jack screw drive: 0W
- Power supply: 400 / 50 - 60V/Hz
- Feed force: 0N
- Coolant pump capacity: 0l/min
- Cubature: 500 x 350 x 840mm
- Base plate area (lxw): 400 x 500mm
- height (total): 1760mm
- weight: 180kg
Highest quality of ELMAG machines
Benefit from a 2 year ELMAG warranty
Accessories for ELMAG machines on request
