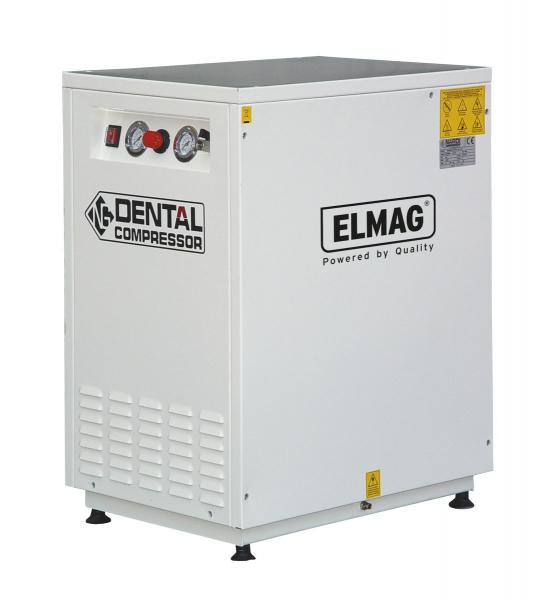

ELMAG EXTREME SV 30L 1,5CV (without dryer) dental compressor 240/8/30W-SILENT
Product Highlights ELMAG EXTREME SV 30L 1,5CV (without dryer) dental compressor 240/8/30W-SILENT
DENTAL COMPRESSORS - EXTREME
The EXTREME oil-free dental compressors provide compressed air of the highest quality and are suitable for dental surgeries, laboratories, medical practices, food packaging, beverage filling and many other applications where hygienic and clean air is a must.
The option of a state-of-the-art adsorption dryer guarantees dry air down to a dew point of -40°C. The versions including a sound insulation bonnet guarantee an extremely low noise level.
OVERVIEW OF THE RANGE
- 100 % oil-free
- Models with horizontal or vertical DL tank (25 & 50 litres stationary, 90 litres mobile)
- Soundproofed models
- With or without adsorption dryer
- Pressure regulator and mini ball valve IG 1/4" as standard for air outlet
- CONDOR pressure switch
- Suitable for up to 5 dental treatment units
The EXTREME oil-free dental compressors provide compressed air of the highest quality and are suitable for dental surgeries, laboratories, medical practices, food packaging, beverage filling and many other applications where hygienic and clean air is a must.
The option of a state-of-the-art adsorption dryer guarantees dry air down to a dew point of -40°C. The versions including a sound insulation bonnet guarantee an extremely low noise level.
OVERVIEW OF THE RANGE
- 100 % oil-free
- Models with horizontal or vertical DL tank (25 & 50 litres stationary, 90 litres mobile)
- Soundproofed models
- With or without adsorption dryer
- Pressure regulator and mini ball valve IG 1/4" as standard for air outlet
- CONDOR pressure switch
- Suitable for up to 5 dental treatment units
Technical facts ELMAG EXTREME SV 30L 1,5CV (without dryer) dental compressor 240/8/30W-SILENT
- Guaranteed oil-free compressed air!
- Direct-coupled motor/compressor block design for minimum transmission losses and optimum performance.
- 2 or 4-cylinder low-speed motor with only 1,400 rpm
- Electric motor with automatic thermal protection for safe operation
- High-performance fan for optimum cooling
- All pressure vessels are epoxy-coated on the inside for low corrosion, long service life and safe operation
- Including sound-insulating bonnet
- State-of-the-art design for efficient cooling, low temperatures and long service life
Technical data ELMAG EXTREME SV 30L 1,5CV (without dryer) dental compressor 240/8/30W-SILENT
- Dental treatment units: 1-2
- Effective delivery rate: 125 l/min
- Suction capacity: 240 l/min
- Max. Operating pressure: 8 bar
- Adsorption dryer: No
- Motor power: 1.1 kW / 1.5 PS
- Voltage/frequency: 230 V / 50 Hz
- Sound pressure level (1 m): 63 dB(A)
- Dimensions: 65x44x76 cm
- Weight: 68 kg
Benefit from a 2-year warranty from ELMAG
Accessories for ELMAG machines on request
