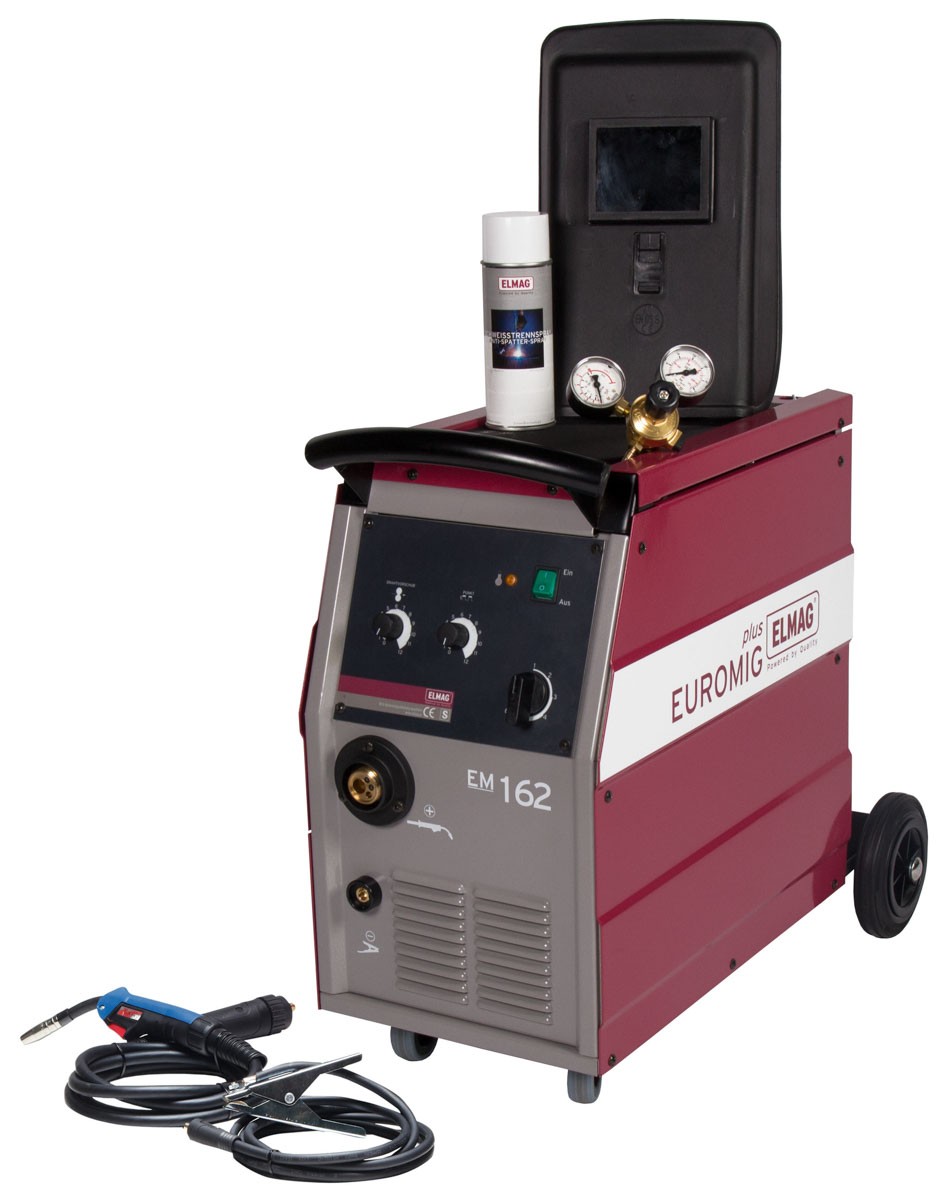

ELMAG EUROMIG plus 162 GAS/NOGAS shielding gas welding machine
Product Highlights ELMAG EUROMIG plus 162 GAS/NOGAS shielding gas welding machine

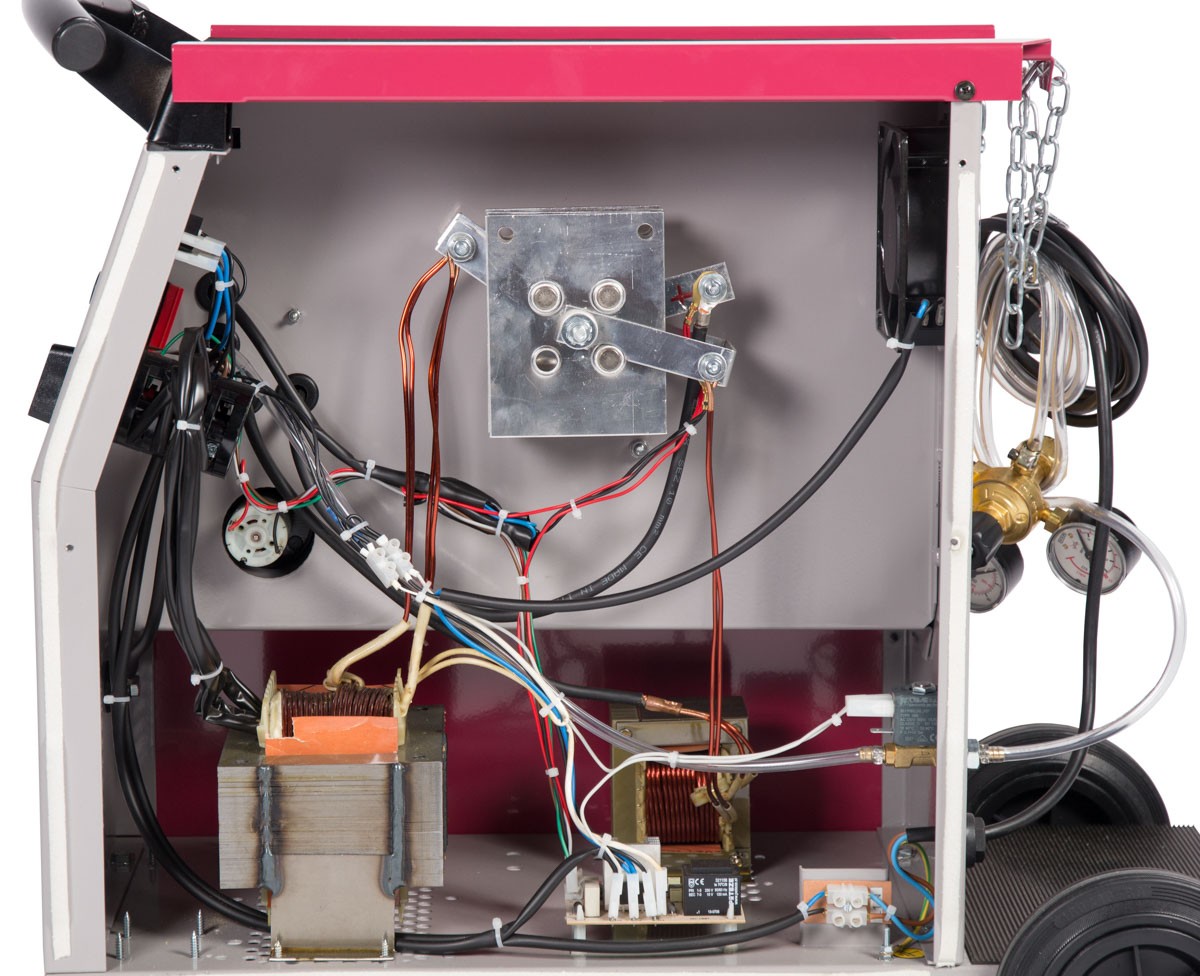

The most important thing is inside
- All EUROMIG plus models have a main transformer with high-quality copper winding, winding materials insulation class H (180°C)
- Optimally dimensioned silicon plate rectifier for highest welding current quality:
Materials
- Steel
- CrNi
- Aluminium (limited)
- All EUROMIG plus models have a main transformer with high-quality copper winding, winding materials insulation class H (180°C)
- Optimally dimensioned silicon plate rectifier for highest welding current quality:
Materials
- Steel
- CrNi
- Aluminium (limited)
Application examples ELMAG EUROMIG plus 162 GAS/NOGAS shielding gas welding machine
- CAR
- Companies
- Facade construction
- Plumbing
- Training workshops
- Hobby workshops
- Companies
- Facade construction
- Plumbing
- Training workshops
- Hobby workshops
Technical facts ELMAG EUROMIG plus 162 GAS/NOGAS shielding gas welding machine
- EUROMIG plus - Overview

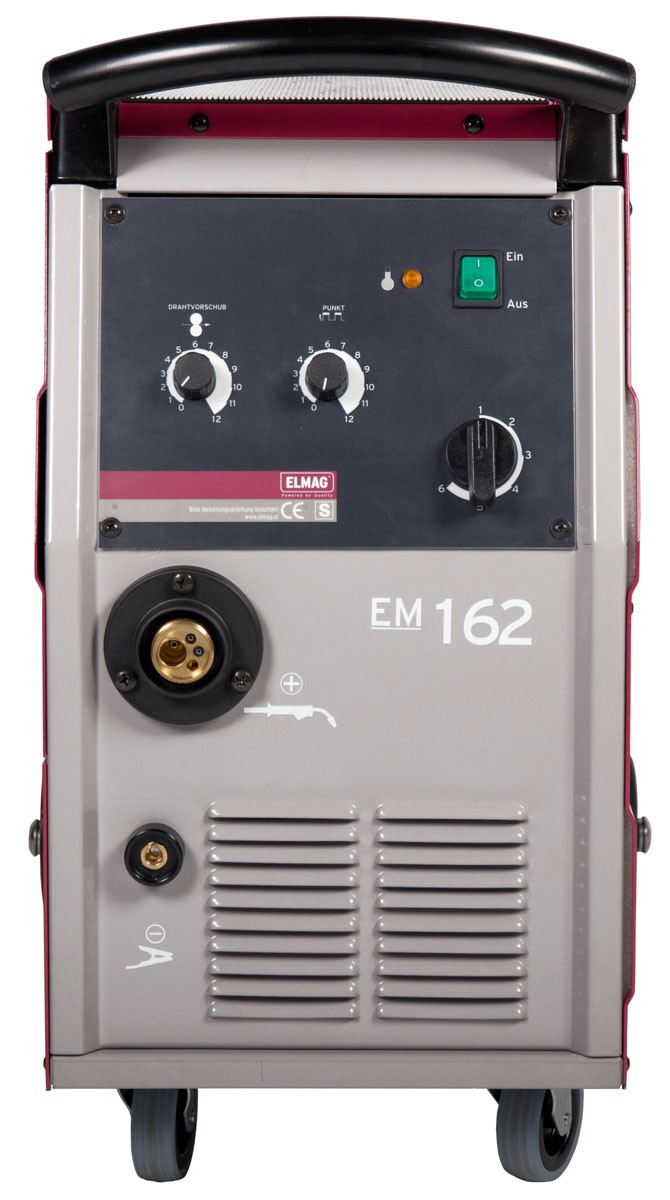

- Ergonomic control panel, angled arrangement for good overview
- Welding current circuit breaker
- Wire feed controller stepless
- Spot welding automatic stepless for easy reproducibility of welding spots
- Temperature control lamp - all EM with efficient overload protection incl. automatic reset, thermal sensor integrated in transformer winding

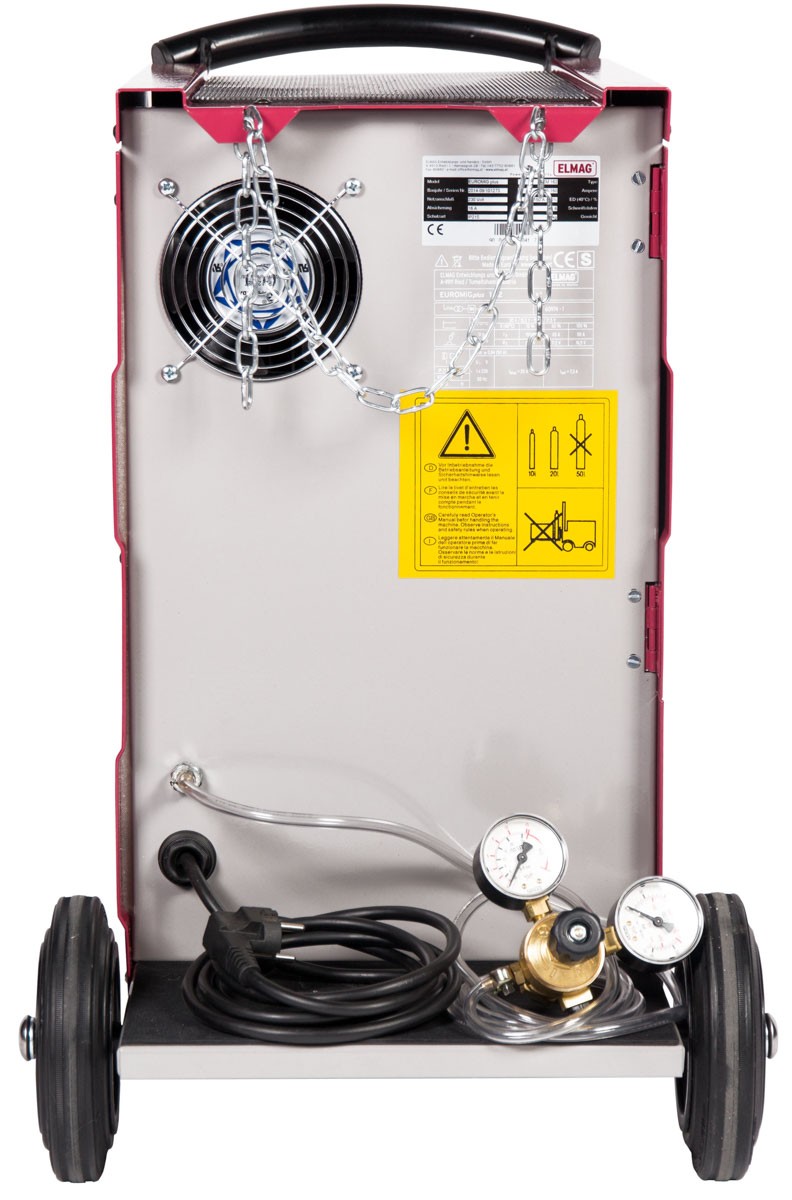

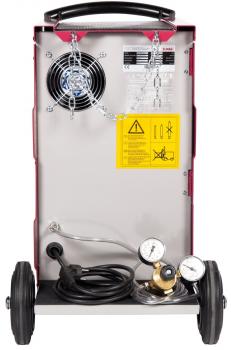

- Powerful cooling fan (rear)
- Main switch with operating lamp
- Earth connection plug Ø 9 mm 16/25 mm²
- Hose package connection Original BINZEL
- No-Gas function for flux-cored wire welding without shielding gas, e.g. outdoors

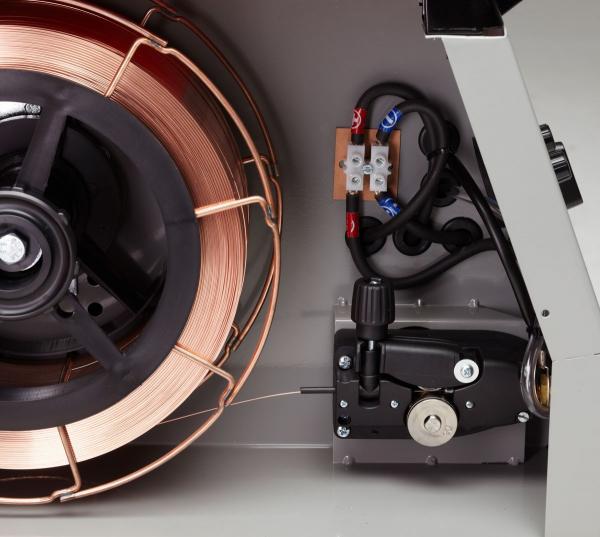

- Wire feed motor with two feed rollers, guide roller adjustable
- Tool tray with anti-slip coating
- Original BINZEL hose package MB 15 / 3 m
- Earth cable with welding cable plug / earth terminal
- Pressure regulator / pressure gauge / flow meter
- Feed rollers Wire diameter 0.6 / 0.8 mm
- Wire spool adapter 5 kg / 200 mm
- Wire spool adapter 15 kg / 300 mm
- Hand welding shield PVC including welding glass
- Separating spray for welding nozzles
- Operating instructions / CE
Technical data ELMAG EUROMIG plus 162 GAS/NOGAS shielding gas welding machine
- Aluminium wire diameter: - mm
- welding rod roll diameter: 200 / 300mm
- welding rod roll weight: 5 / 15kg
- Welding current setting range: 30 - 150A
- Welding current switching stages: 6Anz.
- 100 % duty cycle (10 min. at 40 °C) at welding current: 100 / 50A
- Duty cycle (10 min at 40°C) at max. welding current: 10 / 150% / A
- Max. power consumption: 23kVA
- Mains connection / phases: 230 / 1V / ~
- Mains frequency: 50 60Hz
- Mains fuse protection slow: 16AT
- Protection class (IP): 21 S
- Feed drive X/Y/Z: 2 rollers
- Connection plug: Schuko 16 A
- width: 450mm
- depth: 740mm
- height: 640mm
- weight: 49kg
Highest quality of ELMAG machines
Benefit from a 2 year ELMAG warranty
Accessories for ELMAG machines on request
