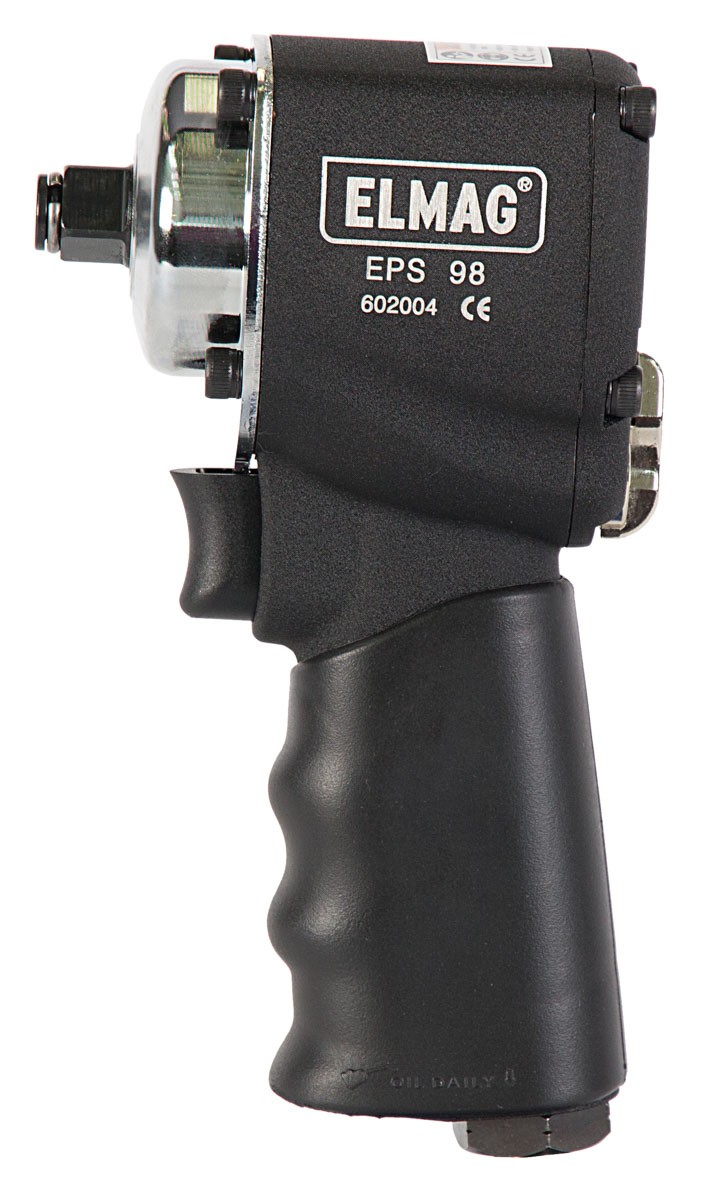

Product Highlights ELMAG EPS 98 Mini DL impact wrench 1/2'
ELMAG EPS
The cutting-edge EPS models are highly ergonomic high-tech products for trade, commerce and industry, but also for private workshops and garages.
EPS TECHNOLOGY
Developed in the technical laboratory under real practical conditions, the EPS air tools are characterised by outstanding technical perfection.
Tight manufacturing tolerances, self-centring, precision-ground air motors and high-precision quality bearings from leading brand manufacturers ensure improved running smoothness, optimised air consumption and maximum product performance.
EPS SAFETY
Pneumatic tools are the safest powered tools. They generally offer significantly more safety than electric tools and are also more ergonomic than them. Without an electric motor, a more manageable and user-friendly design is possible and - what is particularly advantageous - there is no risk of electric shock or explosion. In addition, air tools can be used safely even in wet environments.
Even when blocking, e.g. an air drill, there is no risk of injury. Only one sixth of the reverse torque acts on the handle, whereas with an electric drill it increases several times over.
EPS pneumatic tools are CE-compliant. They are equipped with safety switches and, where necessary, protective covers.
CARE AND OPERATION
Built for continuous use under the toughest conditions, DL tools require a minimum of care. Provided clean and dry (condensate-free) compressed air is used as the drive medium. Water residues cause corrosion and thus damage to the air motor and components. Compressed air treated by refrigeration dryers and filters is optimal.
By the way - compressed air must be oiled! It is easiest to use maintenance units, automatic oilers or inline oilers. It is advisable to add a few drops of ELMAG oiler oil directly into the air connection opening before and after each working day or before longer breaks.
POWER REDUCTION
For careful tightening of bolted connections, e.g. when continuing to work with a torque spanner so as not to overtighten anything. The power regulator is located in a knob together with the right/left switch. Well visible and protected on the rear end of the tool.
Technical facts ELMAG EPS 98 Mini DL impact wrench 1/2'
- The smallest 1/2' model from ELMAG
- Professional impact wrench in particularly small design for confined spaces
- Overall length of ONLY 98 mm
- 3-stage power control for clockwise/anticlockwise rotation
- HDS
- Very light and especially good handling
- Exhaust air downwards through the handle
Technical data ELMAG EPS 98 Mini DL impact wrench 1/2'
- Mounting: 1/2 inch
- Max. loosening torque: 678 Nm
- Max. Tightening torque: 542 Nm
- Max. Operating pressure. 6.3 bar
- Air requirement: 160 l/min
- Air connection: 1/4 inch
- Speed: 10000 rpm
- Vibration: 7.7 m/sec²
- Sound pressure level (1 m): 96 dB(A)
- Length: 98 mm
- Weight: 1,4 kg
