ELMAG electrode welding inverter SD 2035M PFC/MV
NEW
Product highlights ELMAG electrode welding inverter SD 2035M PFC/MV
‘Multi Line’ incl. 3m earth cable 25mm², 4m E-holder cable 25mm² & carrying strap
Portable MMA/E manual welding inverter
with modern IGBT design for direct current (DC) welding of all common coated stick electrodes for steel and stainless steel. The LIFT TIG function also enables welding using a tungsten electrode. The accessories required for this are optionally available.
with modern IGBT design for direct current (DC) welding of all common coated stick electrodes for steel and stainless steel. The LIFT TIG function also enables welding using a tungsten electrode. The accessories required for this are optionally available.

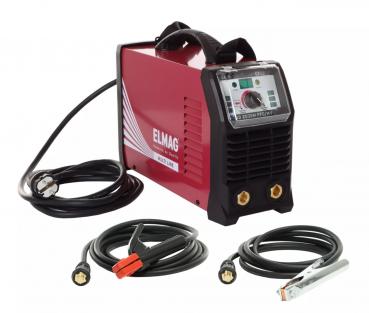

Standard equipment ELMAG electrode welding inverter SD 2035M PFC/MV
- 4m electrode holder welding cable 25mm2 / plug Ø 13mm 35/50mm2
- 3m earth cable 25mm2 / plug Ø 13mm 35/50mm2
- Carrying strap
Technical facts ELMAG electrode welding inverter SD 2035M PFC/MV
- Suitable for repair/installation companies, trade, medium-sized industry, outdoor and offshore welding, agriculture and metal construction

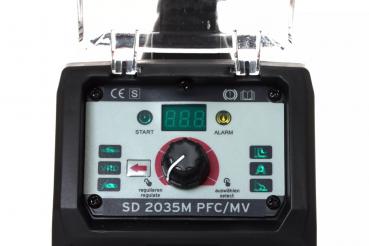

- Digital display for welding current (A) and special functions
- PFC TECHNOLOGY (Power Factor Correction): Ensures a stable welding process even with fluctuating mains voltage, enables operation with power generators and long extension cables without any negative effect on the welding arc
- MULTIVOLTAGE: Design ensures a wide range of applications, even abroad
- Energy-saving, low open-circuit voltage, thermally controlled fan
- The high efficiency fulfils the strict EU standards for the environmentally friendly design of welding equipment
- HOT START+ (adjustable 0-10%): Increase in ignition current ensures better arc ignition
- ARC FORCE+ (adjustable 0-10%): Welding current increase when the workpiece is too close to prevent sticking of the rod electrode and to achieve more even welding and deeper penetration
- ANTI STICK: Automatic welding current reduction if the electrode sticks to prevent annealing and to make it easier to detach the electrode
- VRD (Voltage Reduction Device): Selectable safety system to reduce the output voltage when idle to reduce the risk of electric shock
- LIFT-TIG: Improved ignition characteristics for TIG welding, touch the workpiece with the tungsten electrode, pull up 1-3 mm, ignition takes place and the welding process continues with the set welding current
- JOB function: 10 welding programmes can be saved
- GEN POWER: Can be operated using a voltage-regulated power generator
- EXTENSION: Can be used with up to 100m extension cable (3 x 2.5 mm²)
Technical data ELMAG electrode welding inverter SD 2035M PFC/MV
| Welding electrode diameter | 230V: MMA 1,6-5,0mm / WIG 1,0-3,2mm | 110V: MMA 1,6-3,2mm / WIG 1,0-2,4 mm |
| Welding current setting range | 230V: MMA/WIG 10-200 A | 110V: MMA/WIG 10-110 A |
| 100 % duty cycle (10 min at 40 °C) at welding current | 230V: MMA/WIG 100 % / 130 A | 110V: MMA/WIG 100 % / 70 A |
| Duty cycle (10 min at 40°C) at max. welding current | 230V: MMA/WIG 35 / 200 % / A | 110V: MMA/WIG 35 / 110 % / A |
| Open circuit voltage | 14,5 V |
| Mains connection / phases | 230 / 1 | 110 / 1 V / ~ |
| Mains current tolerance | 230V: MMA/WIG +15 / -60 % | 110V: MMA/WIG +150 / -15 % |
| Mains fuse inert | 16 AT |
| Protection class (IP) | 23 |
| Efficiency | 85 % |
| Power consumption in idle mode | 230V: MMA/WIG 34,4 W | 110V: MMA/WIG 35,2 W |
| Power consumption l1 max. / l1 eff. | 230V: MMA 31,1 / 19,7 A WIG 21,4 / 13,5 A | 110V: MMA 31,6 / 20,0 A WIG 20,6 / 13,0 A |
| Earth connection plug / cross-section | 13 / 25 Ø / mm² |
| Connector plug | Schuko 16 A |
| Depth | 135 mm |
| Height | 270 mm |
| Weight | 5.7 kg |
Highest quality machines from ELMAG
Benefit from a 2-year ELMAG guarantee
Accessories for ELMAG machines on request
