incl. electronic torque monitoring -16 pcs. quick-change chuck with slip clutch DIN 371/379 mount

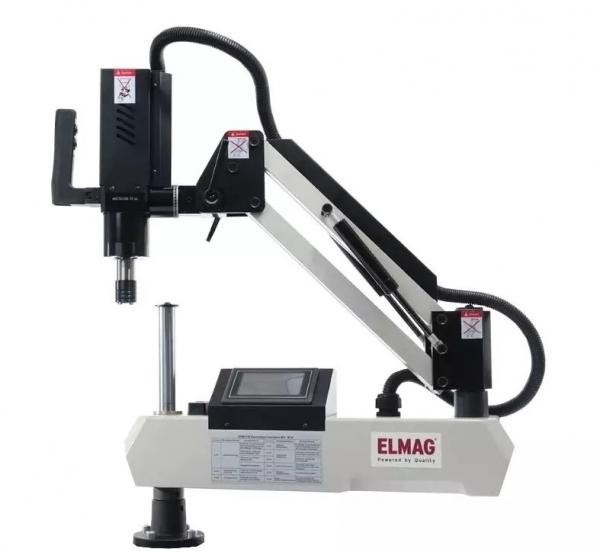

Product highlights ELMAG EGM 336 Tapping arm M6-M36
The ELMAG thread cutting arm of the EGM series enables the user to precisely cut vertical threads from 3 - 16 or 3 -36 mm. The cutting arm is held in place by hydraulic cylinders and is optimally balanced so that it can be operated with minimum effort. Electronic torque monitoring reduces wear and damage to the cutting tool.
Flexible and intuitive thread cutting
-Torque protection
-Manual and automatic thread cutting mode
-Stable and smooth-running design
-High-resolution touch display
-Suitable for vertical machining
-Suitable for horizontal machining
-Infinitely variable speed adjustment
-Efficient working
Standard equipment
- Tapping arm
- 14 quick-change chuck
- Slip clutch DIN 317/379
- Operating instructions / CE
Special accessories
- Mobile base frame for EGM series incl. machined base plate and with storage space Art. No. 81038
- MH 300 Magnetic holder for EGM 316 Art. No. 81041
Technical facts ELMAG EGM 336 Tapping arm M6-M36
- Der schwenkbare Schneidarm mit großem Radius ermöglicht die einfache Positionierung des Gewindebohrers am Werkstück
- Gewindeschneiden in jedem gewünschten Winkel von 0° bis 90°
- Geeignet für Materialien wie Stahl, Edelstahl und Aluminium
- Höchste Genauigkeit, sehr zeitsparendes Bohrsystem
- Bedienung über Touchdisplay
- Digitale Drehmomentüberwachung und Gewindetiefeneinstellung
- Inklusive Schnellwechselfutter mit integrierter Rutschkupplung
- Untergestell optional erhältlich
Technical data ELMAG EGM 336 Tapping arm M6-M36
| threaded holes |
M6-M36 |
| working radius |
1100 mm |
| t-slots, width |
14 mm |
| angle |
0-90 ° |
| speed range |
0-150 rpm |
| voltage |
230 V |
| motor power |
1200 W |
| weight |
45 kg |
