A light and precise press brake with three automatic drive axes is sufficient for the economically favourable production of most press brake parts. The hydraulic vertical axes (Y1, Y2) must be precisely synchronised and the backgauge (X) should be equipped with a fast electric drive and precise ball screws.
BENDING PERFORMANCE CUSTOMISED
The longer the bent parts are, the greater the bending capacity must be. ECO BEND models are available with a bending capacity of 80 to 200 tonnes. With a bending length of 2,600 to 4,100 mm, they cover the requirements of many metal processing companies. Powerful drive units with an output of 5.5 to 11.0 kW provide sufficient power for continuous serial use.
PRECISION LIKE A LARGE MODEL
With a synchronisation tolerance (Y1, Y2) and a linear guide tolerance of the backgauge (X) of just ± 0.01 mm each, ECO BEND models meet the highest demands in terms of parallelism of the bending tools and precise workpiece positioning.
CNC-CONTROLLED
The vertical axes and backgauge are programmed very quickly and easily on the swivelling ER 70 CNC control unit. The 99 bending step repetitions for series and the automatic axis positioning are particularly time-saving.
HIGH PRODUCT SAFETY
CE safety devices such as side guards, side gap covers and a light barrier at the rear of the machine offer optimum safety. Further safety devices are available as optional extras.
BOMBING POSSIBLE
A manual or motorised crowning device for pre-tensioning the lower tool at very high bending capacities is available as an optional extra.
Examples of use ELMAG ECO-BEND 3100x200t Hydraulic press brake 3-axis
- Mechanical engineering
- Switch cabinet construction
- Car workshops
- Car body construction
- Locksmiths
- Tinsmiths
- Plumbers
- Insulation companies
- Facade construction
- Training workshops
Special accessories ELMAG ECO-BEND 3100x200t Hydraulic press brake 3-axis
Robust industrial models from state-of-the-art production with high edge accuracy
Welded, very stable and stress-free monoblock steel construction with very good vibration damping and high tensile strength to absorb the bending moment
High-quality BOSCH-REXROTH or HOERBIGEr hydraulic system
Precise proportional valve technology
CNC linear scales, synchronisation tolerance ± 0.01 mm

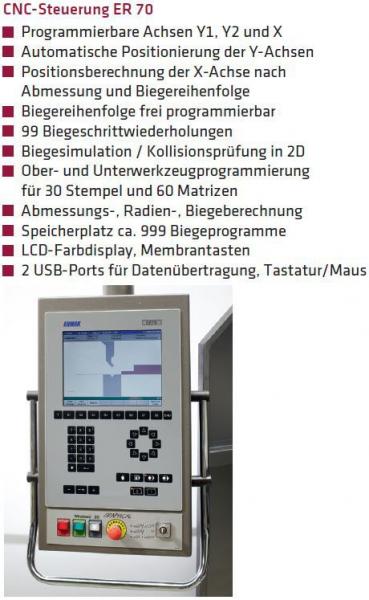

ER 70 CNC control with 2D graphic display and bending simulation
Automatic positioning of the Y-axes
X-axis backgauge system with AC motor/ball screw
Precisely adjustable backgauge parallelism
Linear guide tolerance of the backgauge ± 0.01 mm
Bending tools made of high-alloy, hardened special steel
Projection 250 mm
Switch cabinet with cooling system, SIEMENS electrical components
CE safety devices
Installed safety through side gap covers
Light barrier on the rear of the machine
Emergency stop button on the control unit and on the foot release
Easy handling

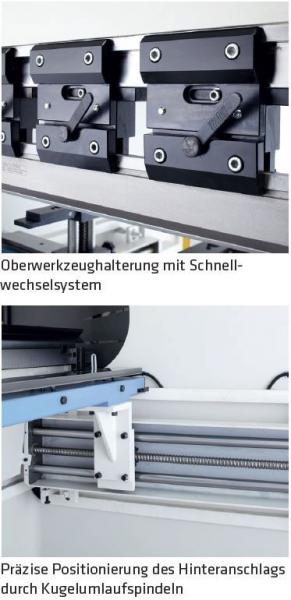

Top tool holder with quick-change system
Upper tool segments can be easily exchanged
Lower tool with four V-bending channels
Ergonomic, rotating control panel
Two support arms with T-slot, five adjustment positions
Mobile foot release

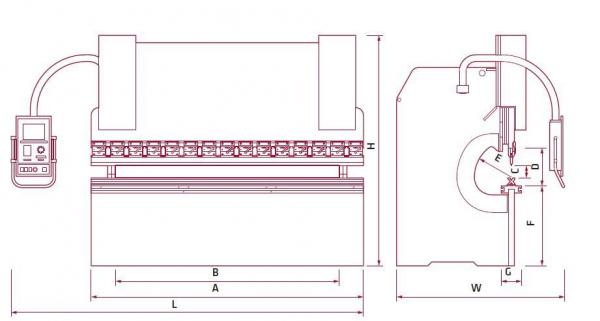

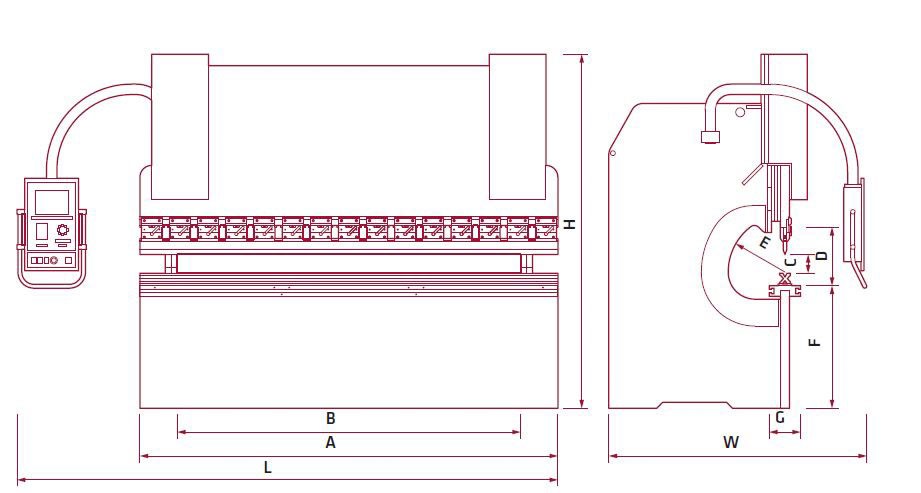

Technical data ELMAG ECO-BEND 3100x200t Hydraulic press brake 3-axis
Bending length
3.100 mm
Bending performance
200 t
Rapid traverse Y-axis
100 mm/s
Y-axis speed
7,0 mm/s
Y-axis retraction
75 mm/s
X-axis travel
500 mm
Speed X-axis AC motor
230 mm/s
Backgauges
2 Anz.
Support arms
2 Anz.
Engine power
11,0 kW
Column spacing
2.050 mm
Stroke
180 mm
Installation height
415 mm
Projection
250 mm
Table height
800 mm
Table width
200 mm
Length
4.450 mm
Heigth
2.650 mm
Width
2.050 mm
Oil tank volume
200 l
Weight
8.050 kg
