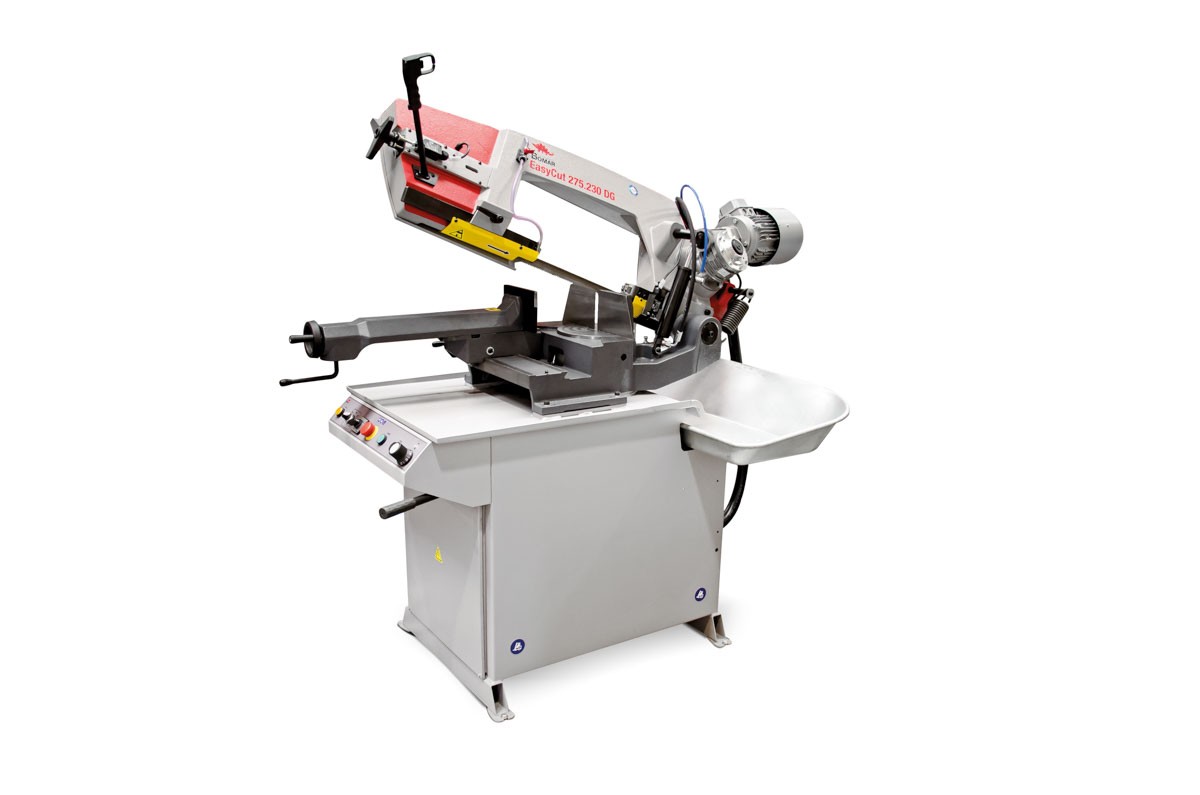

Product highlights ELMAG EASYCUT 275.230 DG BOMAR metal band saw machine
UNIVERSAL METAL BAND SAW
EasyCut 275.230 DG is a universal gravity band saw with a robust cast iron saw frame and saw band with a height of 27 mm. Precise guidance of the saw band, saw frame joint placed in pre-stressed tapered roller bearings and synchronously running brush for removing chips are good prerequisites for effective performance of the machine and long saw band life. The pressure into the cut is ensured by the saw frame's own weight. The lowering speed of the saw frame is continuously controlled by a hydraulic cylinder with overflow valve. After cutting the material and switching off the saw band, the saw frame is lifted manually. The saw band is driven by an industrial two-speed drive with worm gear.
Standard equipment ELMAG EASYCUT 275.230 DG BOMAR metal band saw
- Sturdy cast iron frame
- Vise quick clamping device
- start/stop function

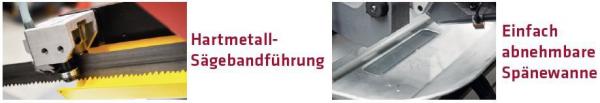

- Carbide saw blade guides
- Band saw blade BI-Metal

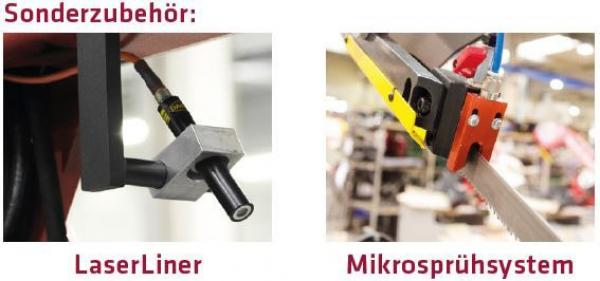

Special accessories ELMAG EASYCUT 275.230 DG BOMAR metal band saw
- LaserLiner laser liner laser army guideline
- Micro-spraying device 24V
Technical data ELMAG EASYCUT 275.230 DG BOMAR metal band saw machine

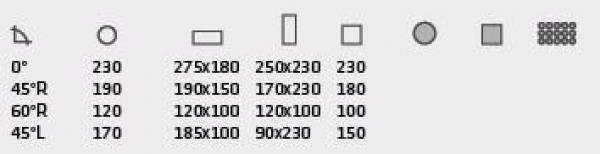

- cutting range max.: 275x230 mm
- Saw blade length: 2,720 mm
- saw band height: 27 mm
- saw blade thickness: 0,9 mm
- cutting angle: 45-0-60 °
- Speed steps: 2
- cutting speed 1/2: 40/80 m/min
- Saw blade drive Motor power: 1,100/1,500 W
- Power supply: 400/50-60 V/Hz
- Inlet height: 978 mm
- Remaining piece length: 20 mm
- Length: 1.588 mm
- Width: 1.150 mm
- Height: 1.477 mm
- Weight: 370 kg
Highest quality of ELMAG machines
Benefit from a 2 year ELMAG warranty
Accessories for ELMAG machines on request
