ELMAG DSM 200/150 WTN double grinding machine
Product highlights ELMAG DSM 200/150 WTN double grinding machine
Professional sanding blocks - versatile use
DSM double grinding machines enable efficient roughing and fine grinding of metal parts and tools such as drills, turning tools, turning irons, mower and chopper blades, chisels, axes, knives, shears etc.
Shaping - regrinding - sharpening
Forming and regrinding involves removing material with the rough grinding wheel to produce a desired shape, contour, surface, or cutting angle. When sharpening, a cutting edge is produced on a contour using the fine grinding wheel. Cutting tools are resharpened by fine grinding (fettling).
DSM 200/150 WTN
Wet/dry grinding machine for the precise sharpening and shaping of drilling, turning, turning and cutting tools.
DSM double grinding machines enable efficient roughing and fine grinding of metal parts and tools such as drills, turning tools, turning irons, mower and chopper blades, chisels, axes, knives, shears etc.
Shaping - regrinding - sharpening
Forming and regrinding involves removing material with the rough grinding wheel to produce a desired shape, contour, surface, or cutting angle. When sharpening, a cutting edge is produced on a contour using the fine grinding wheel. Cutting tools are resharpened by fine grinding (fettling).
DSM 200/150 WTN
Wet/dry grinding machine for the precise sharpening and shaping of drilling, turning, turning and cutting tools.
Standard equipment ELMAG DSM 200/150 WTN double grinding machine
- DSM grinding machine
- Grinding wheel Grit size 36
- Grinding wheel Grain size 80
- Eye protection glass 1 with grinding magnifier
- Grinding support adjustable on the left
- Grinding protection cover left
- Zero voltage release
- Tools/operating instructions/CE
- Grinding wheel Grit size 36
- Grinding wheel Grain size 80
- Eye protection glass 1 with grinding magnifier
- Grinding support adjustable on the left
- Grinding protection cover left
- Zero voltage release
- Tools/operating instructions/CE
Special accessories ELMAG DSM 200/150 WTN double grinding machine
- Machine stand, heavy duty version
- Machine stand, lightweight design
- Wall console
- Universal drill grinding device for twist drills 3-19 mm
- Machine stand, lightweight design
- Wall console
- Universal drill grinding device for twist drills 3-19 mm

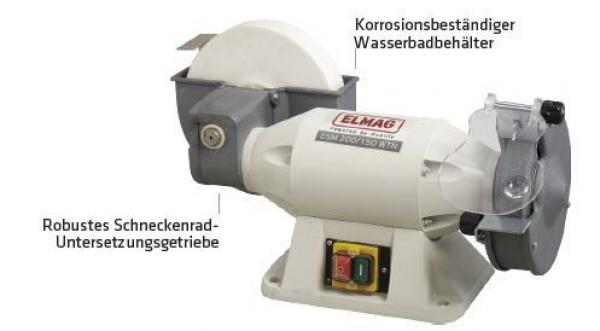

Technical facts ELMAG DSM 200/150 WTN double grinding machine
- Smooth, vibration-free concentricity - 230 V double-axle motor with large grinding wheel bearing
- Slow running wet grinding wheel Ø 200x40 mm, grain size 80 for finishing and sharpening
- Durable reduction gear
- Continuous cooling to maintain the cutting hardness - with large water bath tank
- High-speed dry grinding wheel Ø 150x25 mm, grain size 36 for roughing and shaping
- Large, adjustable eye protection glass with grinding magnifier and spark protection
- Adjustable grinding supports
Technical data ELMAG DSM 200/150 WTN double grinding machine
- grinding wheel diameter: left: 200 / right: 150mm
- grinding wheel width: left: 40 / right: 25mm
- grinding wheel bore: 32mm
- grinding speed: 23m/sec²
- Sanding belt speed: -m/sec²
- sanding belt width: -mm
- Surface grinding surface: -mm
- Sanding belt length: -mm
- grinding arm angle: -°
- Speed: 2950 rpm
- Drive Motor power: 520W
- Power supply: 230 / 50-60V/Hz
- Drive shaft diameter: 14mm
- Mounting nut: M12
- length: 520mm
- width: 250mm
- height: 280mm
Highest quality of ELMAG machines
Benefit from a 2 year ELMAG warranty
Accessories for ELMAG machines on request
