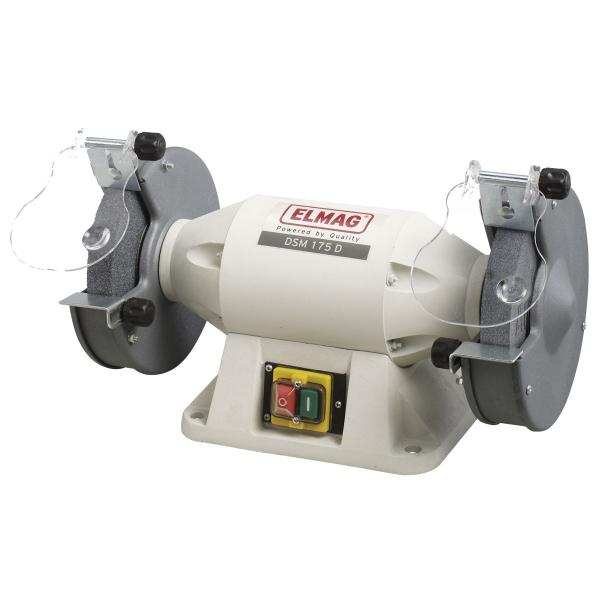

Product highlights ELMAG DSM 175 D double grinding machine
Professional sanding blocks - versatile use
DSM double grinding machines enable efficient roughing and fine grinding of metal parts and tools such as drills, turning tools, turning irons, mower and chopper blades, chisels, axes, knives, shears etc.
Shaping - regrinding - sharpening
Forming and regrinding involves removing material with the rough grinding wheel to produce a desired shape, contour, surface, or cutting angle. When sharpening, a cutting edge is produced on a contour using the fine grinding wheel. Cutting tools are resharpened by fine grinding (fettling).
DSM D models
High-quality double grinding machines for powerful shaping and precise sharpening. Suitable for commercial / industrial continuous use. Very easy to turn: 400 V double axis motor with high torque for heavy grinding work.
DSM 175 D - Ø 175x25 mm
Double grinding machine in industrial design with large grinding radius, 400 V drive with high torque.
Standard equipment ELMAG DSM 175 D double grinding machine
- DSM grinding machine
- Grinding wheel Grit size 36
- Grinding wheel Grain size 60
- Eye protection glass 1 with grinding magnifier
- Eye protection glass 2 with grinding magnifier
- Grinding support adjustable on the left
- Grinding support adjustable on the right
- Grinding protection cover left
- Grinding guard right
- High-performance drive
- Zero voltage release
- Tools/operating instructions/CE
Special accessories ELMAG DSM 175 D double grinding machine
- Machine stand, heavy duty version
- Machine stand, lightweight design
- Wall console
- Universal drill grinding device for twist drills 3-19 mm
Technical facts ELMAG DSM 175 D double grinding machine
- Very easy to turn - 400 V double axis motor with high torque for heavy grinding work
- Efficient - 27 m/s
- Very powerful: drive motor 520 W
Technical data ELMAG DSM 175 D double grinding machine
- grinding wheel diameter: left: 175 / right: 175mm
- grinding wheel width: left: 25 / right: 25mm
- grinding wheel bore: 32mm
- grinding speed: 27m/sec²
- Sanding belt speed: -m/sec²
- sanding belt width: -mm
- Surface grinding surface: -mm
- Sanding belt length: -mm
- grinding arm angle: -°
- Speed: 2950 rpm
- Drive Motor power: 520W
- Power supply: 400 / 50-60V/Hz
- Drive shaft diameter: 16mm
- Mounting nut: M12
- length: 420mm
- width: 230mm
- height: 240mm
- Weight: 18kg
Highest quality of ELMAG machines
Benefit from a 2 year ELMAG warranty
Accessories for ELMAG machines on request
