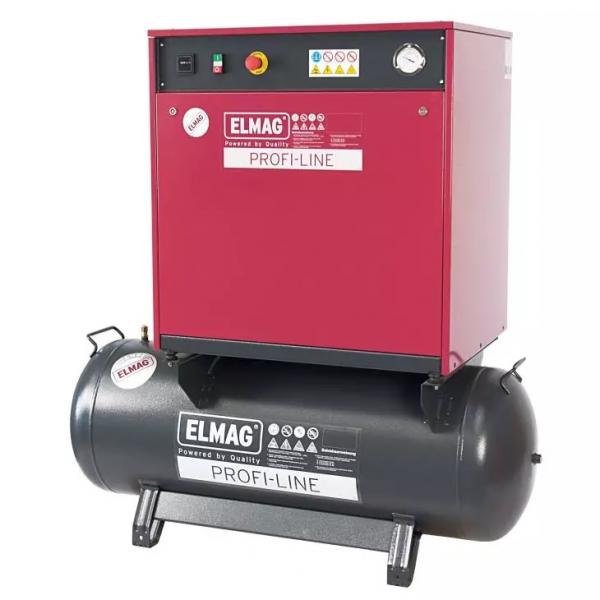

ELMAG Compressor PROFI-LINE 'SILENT' PL-S 350/10/24+100 W

PROFI-LINE SILENT series
The highly effective sound insulation of the ELMAG Profi-Line SILENT air compressors reduces the sound pressure to 68 to a maximum of 69 dB(A), depending on the device. This corresponds to the volume of a conversation. Profi-Line SILENT models are therefore well suited for noise-sensitive production areas and office environments and impress with the high level of development of the proven EUROCOOL units.

- V-belt drive: generous transmission ratio, optimised efficiency
- Low unit speed: 1,000 to max. 1,100 rpm
- Low-noise operation: 68-69 dB(A)
- Low compressed air temperature
- Low condensate formation and very good compressed air quality

All Profi-Line SILENT compressors are equipped with a central control panel - an optional external boiler is required for all models.

Advantages & features:
- No assembly effort
- Space-saving
- Air outlet directly at the DL tank with ball valve or safety venting coupling
- Centralised condensate drainage
- Vibration-free due to vibration buffer
- Simple addition of refrigerant dryer possible
- Operating pressure up to 10 & 15 bar
- Drive 400 Volt, 50 Hz
- Motor protection relay
- Automatic Sern delta switch for model PLS 1100/10 & PL-HS 1080/15
- Solenoid valve for start-up relief, including contactor
- Indirect, optimised drive
- Robust grey cast iron compressor cylinder with large cooling fins
- High-performance precision piston
- All models with two-stage compression
- Intercooler and aftercooler made of die-cast aluminium with large, deep cooling fins
- Large, flow-optimised cast fan wheel for effective cooling of the unit
