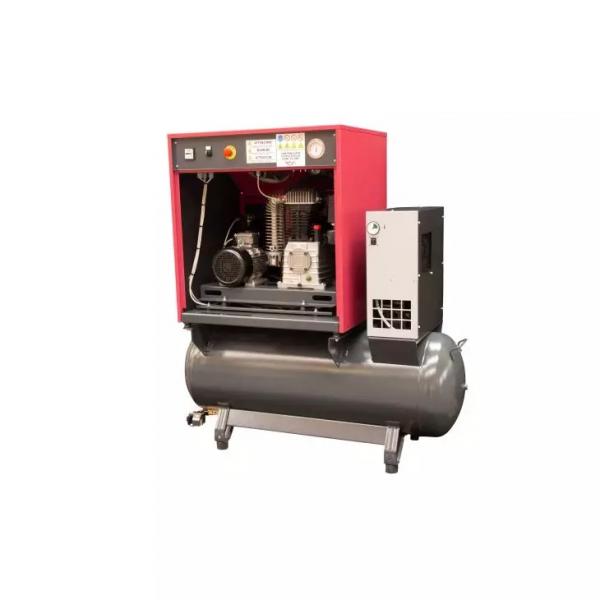

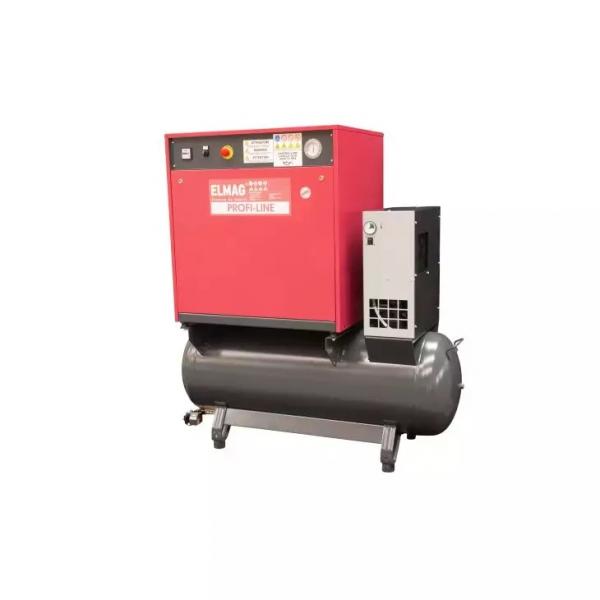

ELMAG Compressor PROFI-LINE 'SILENT' PL-HS D 1080/15/300, Compact unit, incl. refrigeration dryer
Product highlights ELMAG Compressor PROFI-LINE 'SILENT' PL-HS D 1080/15/300
PROFI-LINE SILENT series
The highly effective sound insulation of the ELMAG® Profi-Line SILENT air compressors reduces the sound pressure to 68 to a maximum of 69 dB(A), depending on the device. This corresponds to the volume of a conversation. Profi-Line SILENT models are therefore well suited for noise-sensitive production areas, including office environments, and impress with the high level of development of the proven EUROCOOL units.
Technical facts ELMAG Compressor PROFI-LINE 'SILENT' PL-HS D 1080/15/300
- No installation effort
- Space-saving
- Air outlet directly at the DL tank with ball valve
- Centralised condensate drainage
- Vibration-free due to vibration buffer
- V-belt drive: generous transmission ratio, optimised efficiency
- Low unit speed: 1,000 to max. 1,100 rpm
- Low-noise operation: 68 - 69 dB(A)
- Multiple vibration damping for low vibrations
- Possible addition of filters
- All Profi-Line SILENT compressors are equipped with a central control panel - an optional external boiler is required for all models.
- Combined with a permanently installed refrigerant dryer for efficient compressed air dehumidification
Technical data ELMAG Compressor PROFI-LINE 'SILENT' PL-HS D 1080/15/300
| Effective delivery quantity |
805 l/min |
| Suction capacity |
1150 l/min |
| Max. Operating pressure |
15 bar |
| Oil lubricated |
yes |
| Container volume |
300 l |
| Rated motor power |
7,5 / 10 kW / hp |
| Electrical connection Voltage / frequency |
400/50 V/Hz |
| Sound pressure level (4 m) |
69 dB(A) |
| Compressor speed |
1100 rpm |
| Air outlet |
1/2 inch |
| Length |
152 mm |
| Width |
70 mm |
| Height |
153 mm |
| Weight |
319 kg |
