Product highlights ELMAG compressor MEISTER-Z 'galvanised' 401/10/50 W
The proven ELMAG MEISTER class:
Perfection in technology, function and design, high quality workmanship down to the smallest detail, robust, reliable and durable - it is not for nothing that MEISTER twin-cylinder air compressors can be found in many commercial and trade businesses. They are the first choice when it comes to the flexible, in-house use of compressed air for various manual tasks or for powerful, continuous use on construction sites. For applications requiring large amounts of compressed air, such as painting large surfaces or sandblasting, a tank volume of at least 100 litres is recommended.
NEW: Internally coated tank (improved corrosion protection)
NEW: Models with hot-dip galvanised tank inside and out (improved corrosion protection)

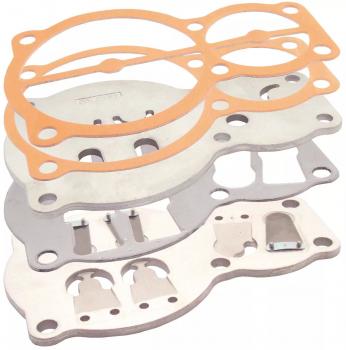

Long service life of MEISTER models thanks to robust valve plates with reed valve made of chrome, nickel and molybdenum steel
Technical facts ELMAG compressor MEISTER-Z 'galvanised' 401/10/50 W
- Operational reliability due to V-belt drive
- 'Plug-and-play' equipment with two quick-connect couplings
- CONDOR pressure switch for automatic on/off operation
- Motor protection switch
- Tank and system pressure gauges
- Filter pressure reducer 'FRM' with metal protective cage
- Safety valve
- Non-return valve
- Solid rubber wheels
- Ball valve for condensate drain
- Swivel castors with brake
Technical data ELMAG compressor MEISTER-Z 'galvanised' 401/10/50 W
| Effective delivery quantity |
240 l/min |
| Delivery quantity according to VDMA 4362, measured at 80 % of the maximum pressure |
yes |
| Suction capacity |
400 l/min |
| Max. Operating pressure |
10 bar |
| Oil lubricated |
yes |
| Container volume |
50 l |
| Type |
Electric motor |
| Execution |
mobile |
| Rated motor power |
2,2 / 3 kW / hp |
| Electrical connection Voltage / frequency |
230/50 V/Hz |
| Sound pressure level (4 m) |
75 dB(A) |
| Compressor speed |
1010 rpm |
| Length |
860 mm |
| Width |
420 mm |
| Height |
870 mm |
| Weight |
58 kg |
