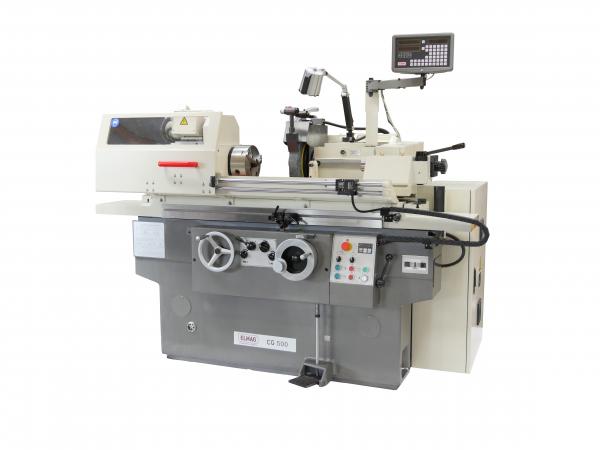

Product highlights ELMAG CG 1500 cylindrical grinding machine
incl. 2-axle position indicator 'SINO'.
Ready for operation: incl. oil filling, depreserved (degreased), completely assembled and test run carried out
PRECISE GRINDING OUTSIDE AND INSIDE

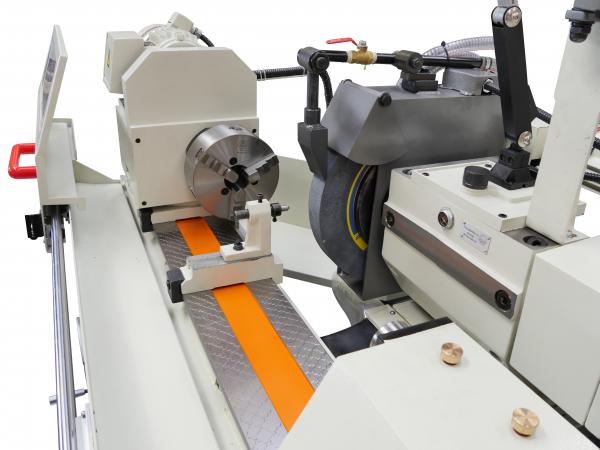

The cylindrical grinding machines of the CG series machine shafts and bores to an accuracy of 0.001 mm. They are used for precision grinding of hardened surfaces, external and internal bearing seats, fitting, running and sliding surfaces.
For the production of grinding surfaces on shafts, the rotary spindle is designed to be lockable.
WIDE RANGE OF APPLICATIONS

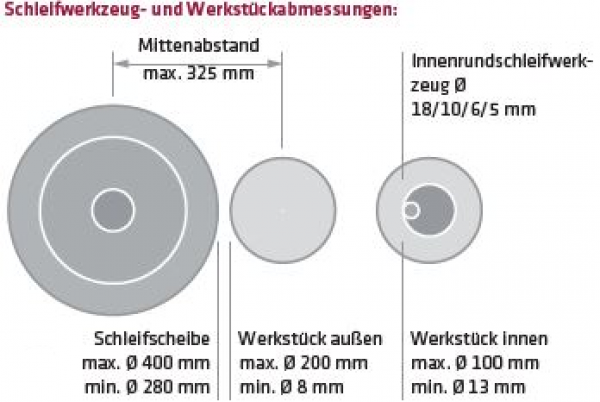

The CG cylindrical grinding machines enable the machining of shafts with diameters from 8 mm to 320 mm and bores from 13 mm to 100 mm.
By rotating the headstock or the grinding table, grinding angles of up to 45-0-45° or conical courses of up to 3 or 9° can be achieved.
The grinding length of the automatic longitudinal feed is adjustable. Shorter grinding lengths must be run manually - just as precisely and easily. The maximum permissible workpiece weight is 80/150 kg.
Infinitely variable speeds offer sufficient leeway for setting an optimum sanding speed. The longitudinal feed speed is infinitely adjustable between 0.1 and 4 m/min.
WITH SINO POSITION INDICATOR
The machines are equipped with a SINO measuring and display system (accuracy 0.001 mm). The grinding wheel can therefore be fed in a controlled and extremely precise manner.
SIMPLE OPERATION
The workpiece is clamped on a three-jaw chuck, on a driving plate or between centres. The tailstock can be closed hydraulically. Thin workpieces are supported by a steady rest. The machine is equipped with a rapid traverse drive for the longitudinal and transverse axes and offers very easy operation in manual and automatic mode:
- Clamp workpiece
- Set the speed
- Switch on spindle drive and grinding wheel motor
- Switch on coolant pump
- Set the grinding wheel to the workpiece
- Adjust grinding stock removal
- Actuate longitudinal feed manually by means of handwheel or
- Set longitudinal feed and switch on automatic mode
Standard equipment ELMAG CG 1500 cylindrical grinding machine
- Digital position indicator SINO
- Grinding wheel
- Grinding wheel dresser
- Grinding wheel balancing shaft

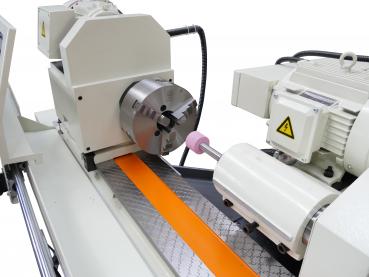

- Internal cylindrical grinding tools Ø 10/16 mm
- Clamping rods for internal cylindrical grinding tools
- Morse taper MK 4
- Three-jaw chuck and chuck holder
- Steady rest
- Cooling lubrication system and hydraulic unit
- Halogen machine lamp
- Tool/operating instructions/CE
Special accessories ELMAG CG 1500 cylindrical grinding machine
- Grinding wheel set complete Article no. 82670
Technical data ELMAG CG 1500 cylindrical grinding machine
- Grinding diameter outside max. / min.: 320/8 mm
- Grinding diameter inside max. / min.: 100/30 mm
- Grinding length outside max. / min.: 1500/- mm
- Workpiece weight max.: 150 kg
- Centre height: 180 mm
- Spindle mount / tailstock Morse taper: MK 4
- Headstock upper part rotation angle: 0 - 45 °
- Turning spindle speed infinitely variable: 0 - 1670 rpm
- Chuck jaw Ø: 200 mm
- Grinding wheel-Ø outside max. / min.: 400/- mm
- Grinding wheel Ø inside: 203 mm
- Grinding wheel width: 50 mm
- Tailstock quill clamping travel: 30 mm
- Workpiece length max.: 1,500 mm
- Longitudinal feed speed max. / min.: 4/0.1 m/min
- Grinding table angle clockwise/counterclockwise: -3/+6 °
- Internal cylindrical grinding tool max.: 50x40x16 mm
- Internal cylindrical grinding tool min.: 45x35x10 mm
- Internal cylindrical grinding tool Speed max.: 10000 rpm
- Coolant pump capacity: 16 l/min
- Grinding head motor power: 9 kW
- Mains connection: 400/50 V/Hz
- Length: 4.610 mm
- Width: 1,810 mm
- Height: 1,520 mm
- Weight: 4,300 kg
