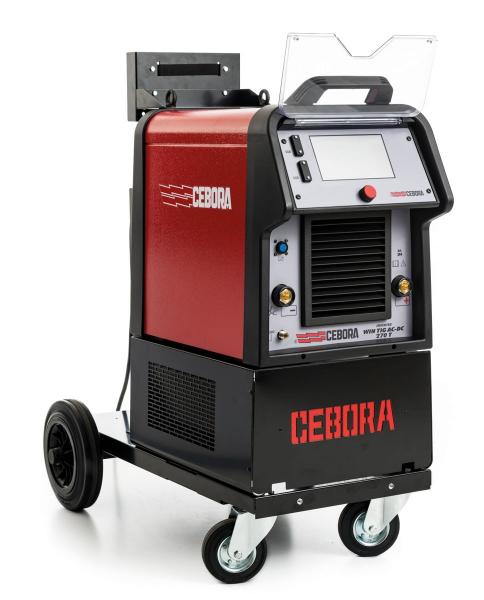

Product Highlights ELMAG CEBORA TIG WELDING SYSTEM 'PFC'
WIG SYNERGY FOR FAST AND CORRECT SET-UP
Automatic parameter setting and electrode display after entering material, thickness and welding position
EQUIPPED WITH 7" LCD TOUCH SCREEN DISPLAY AND USER-FRIENDLY ENCODER
- Easy parameter selection even when wearing welding gloves
- All settings are easy to adjust thanks to the large LCD display and the simple and intuitive graphics
WIG CYCLE - COMPLETE WELDING CYCLE CONTROL
Excellent adjustability and controllability of all welding parameters
WIG WAVE - SELECTION OF DIFFERENT WAVEFORM COMBINATIONS
- Optimum adjustment of penetration depth and cleaning effect
- In AC TIG mode, independent adjustment of amplitudes and times in waveform, penetration and cleaning effect
- Mix function available to improve welding on cold parts
MINIMUM DC DIRECT CURRENT FROM 3 AMPS OR AC ALTERNATING CURRENT FROM 5 AMPS
Enables optimum welds on profiled edges of very thin stainless steels, while the 5 amp AC current enables weldability on very thin aluminium pieces (e.g.: edges on turbine blades)
AC FREQUENCY ADJUSTABLE FROM 50-200 HERTZ
- High pulse frequencies allow a welding arc to be more closely to focus more closely on the area to be welded.
- The option of quilted seam welding enables the execution of welds that must be perfectly manageable in terms of heat input and penetration depth
FAST SPOT
Enables fast spot welding with minimum heat input thanks to individual adjustment (10 ms steps) of welding and interval time
PULSED DC TIG AND PULSXP MODE
With pulse frequency adjustment possibilities of up to 15 KHz, it is possible to achieve an extremely focused arc with very high welding speed (high productivity)
APC FUNCTION IN TIG DC MODE
This new function allows the automatic adjustment of the welding current to the arc height in order to obtain a constant weld pool at high welding speed and minimum deformation of the component.
MODEL 340/T WITH USER INTERFACE
LAN connection with integrated web server for remote maintenance, error evaluation and backups
Examples of use ELMAG CEBORA TIG WELDING SYSTEM 'PFC':
- Production & steel construction companies
- Metal, railing & portal construction
- Machine, plant & container construction
- Series & contract production
Materials ELMAG CEBORA TIG WELDING SYSTEM 'PFC':
- Steel
- CrNi
- Copper
- Aluminium
Technical facts ELMAG CEBORA TIG WELDING PLANT 'PFC':
TIG Set:
- WIN TIG AC-DC 270/T
- transport trolley
- Instruction manual
Technical data ELMAG CEBORA TIG WELDING SYSTEM 'PFC':
- Welding electrode diameter TIG 1.6-4.0 mm / MMA 1.6-5.0 mm
- Welding current setting range TIG 3-270 A / MMA 10-210 A
- 100 % duty cycle (10 min. at 40 °C) at welding current TIG 230 A / MMA 190 A
- Duty cycle (10 min at 40°C) at welding current TIG 250 A / MMA 200 A
- Duty cycle (10 min at 40°C) at max. welding current TIG 40%/270A / MMA 40%/210A
- Open circuit voltage 57 V
- Mains connection / phases 400/3 V / ~
- Mains frequency 50/60 Hz
- Mains current tolerance ±10
- Mains fuse slow-blow 10 AT
- Thermal overload protection YES
- Insulation class H
- Protection class (IP) 23
- Power input l1 max. / l1 eff. TIG 11/9 A / MMA 11.6/10 A A
- Earth connection plug / cross-section 13 / 35 Ø / mm²
- Connector plug EURO CEE 16 A
- Width 560 mm
- Depth 950 mm
- Height 1.010 mm
- Weight 69 kg
Highest quality machines from ELMAG
Benefit from a 2-year ELMAG warranty
Accessories for ELMAG machines on request
