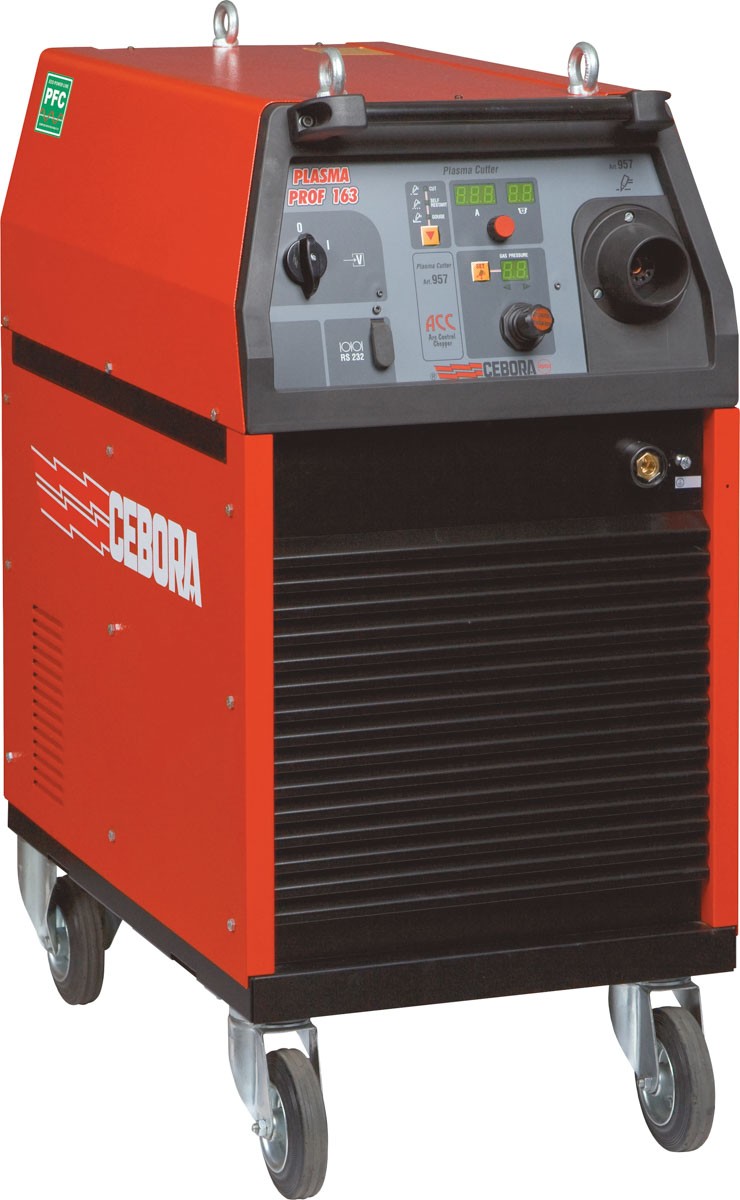

Product-Highlights ELMAG CEBORA PLASMA PROF 163 ACC plasma cutting system
High-TECH cutting devices with electronic control
High dynamic plasma cutting. The energy density of PLASMA PROF's is enormous. The concentrated plasma beam penetrates every metal within seconds. With cutting gap cleaning by compressed air. A smooth cut, almost burr-free.
Standard equipment ELMAG CEBORA PLASMA PROF 163 ACC plasma cutting system
- PLASMA PROF 163 ACC
- Plasma torch package Orig. CEBORA CP161 MAR/6 m
- Earth terminal with 6 m earth cable
- Plug nipple AG 1/4'
- Operating instructions / CE
Technical facts ELMAG CEBORA PLASMA PROF 163 ACC plasma cutting system
PLASMA PROF with energy-saving PFC technology
- DC constant current source with Power Factor Correction PFC (compliant with EN 61000-3-12)
- Reduced power consumption, high mains current tolerance
- Electronic cutting current control (chopper) for consistently high cutting quality
- Cutting current infinitely variable
- High frequency ignition of the pilot arc
- Automatic deactivation of the high frequency after arc stabilization, thus minimizing interference radiation
- POST-FLOW torch cooling after arc cut-off
- Automatic torch recognition / nozzle diameter display
- Excellent for manual and automatic operation

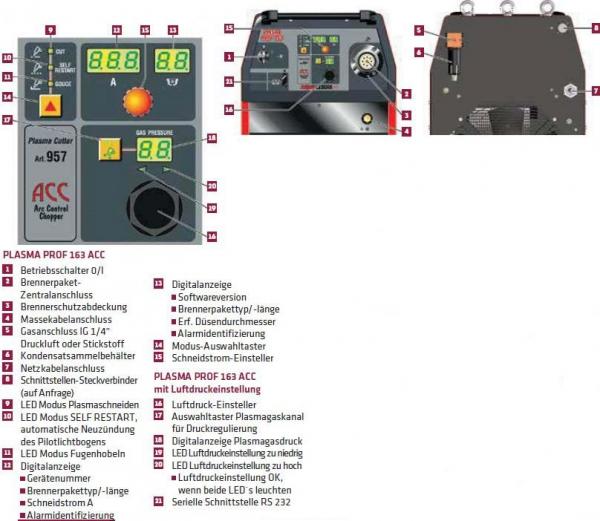

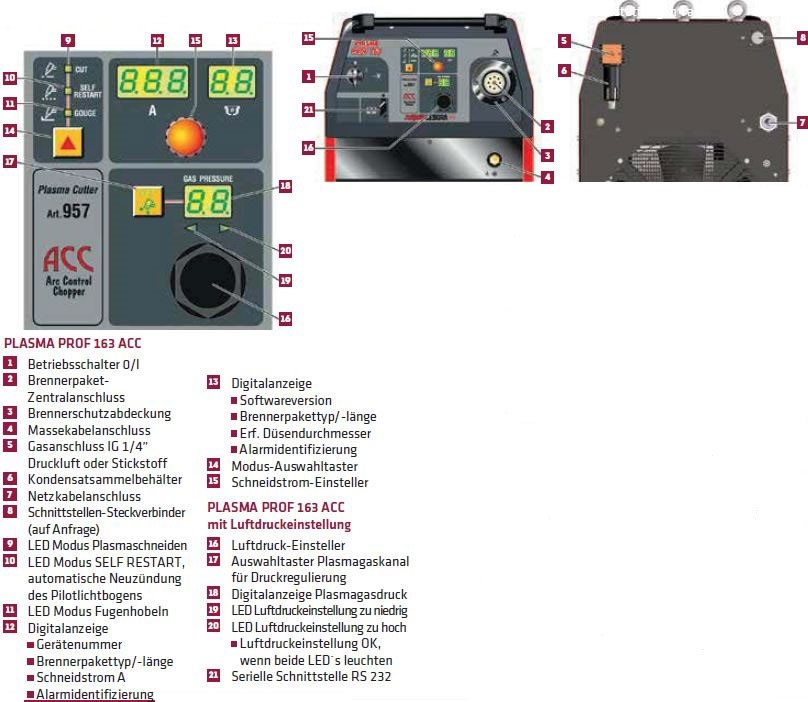

Model 163 ACC with gas pressure control and RS 232 interface
- Gas pressure adjustment and control with ideal pressure display

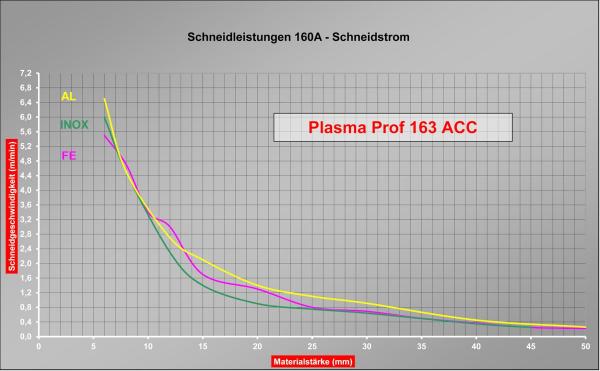

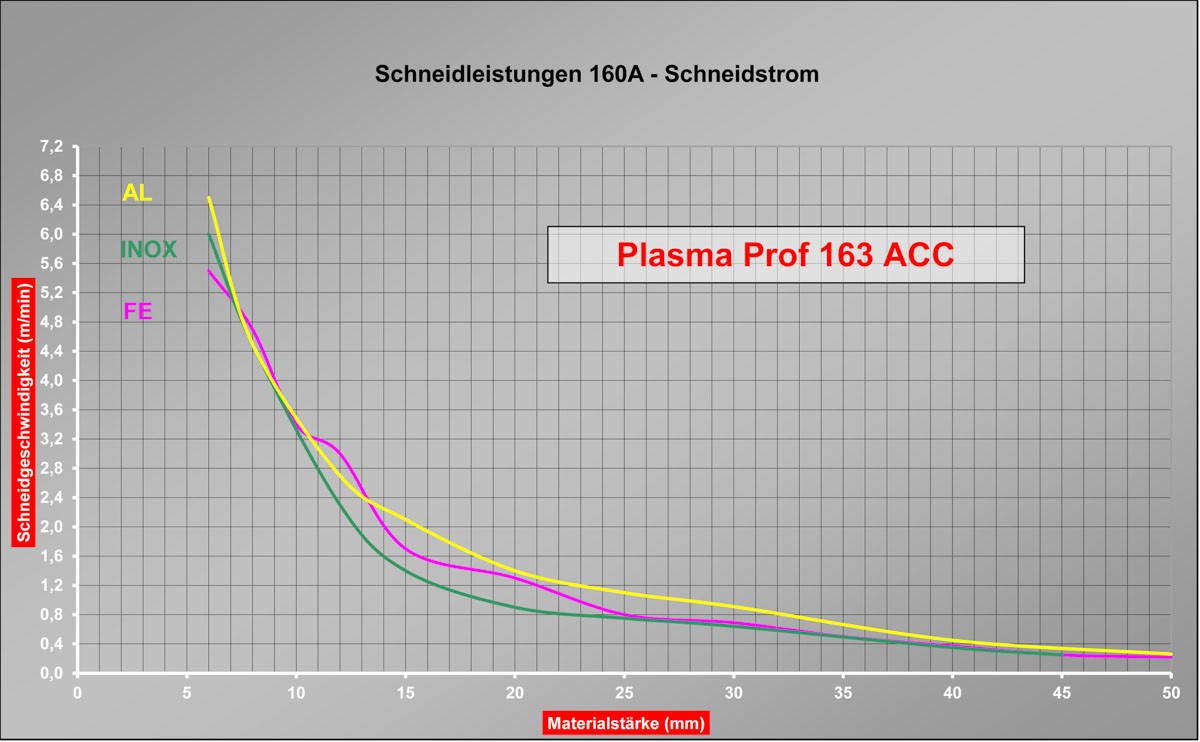

- cutting current 20 - 160 A, very high cutting speed
- Large puncture depth 15 mm, narrow cutting gap
Technical data ELMAG CEBORA PLASMA PROF 163 ACC plasma cutting system
- recommended cutting thickness steel: 0-40mm
- steel cut: 50mm
- Cutting current setting range: 20
- 160A electronic cutting current control: infinitely variable
- 100 % duty cycle (10 min. at 40 °C) at cutting current: 95A
- 60 % duty cycle (10 min. at 40 °C) at cutting current: 120A
- Duty cycle (10 min at 40°C) at max. cutting current: 40 / 160% / A
- Power consumption 100% duty cycle (10 min at 40 °C): 16kVA
- Power consumption 60 % duty cycle (10 min at 40 °C): 22kVA
- Power consumption 40 % duty cycle (10 min at 40 °C): 27kVA
- Mains connection / phases: 400 / 3V / ~
- Mains frequency: 50/60Hz
- Mains current tolerance: ± 10
- Mains fuse protection slow: 50AT
- Protection class: IP 21
- Connection plug: CEE 63 A
- compressed air consumption: 250l/min
- Operating pressure: 5bar
- width: 465mm
- depth: 720mm
- height: 965mm
- weight: 140kg
Highest quality of ELMAG machines
Benefit from a 2 year ELMAG warranty
Accessories for ELMAG machines on request
