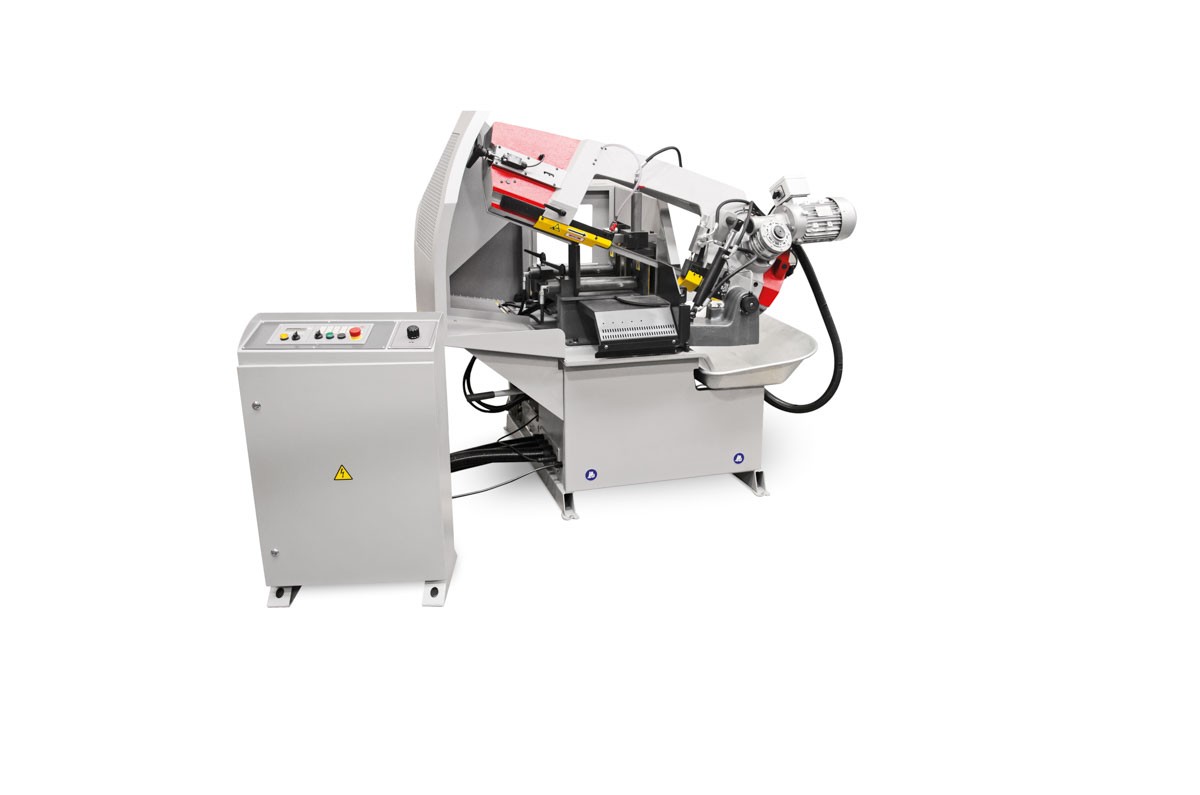

Product Highlights ELMAG BasiCut 275.230 GANC BOMAR metal band saw
Automatic metal band saw with manual mitre adjustment
Automatic band saw with NC control. After programming the piece length and number of pieces, the whole working cycle is carried out. The nominal length of the material to be cut can be easily set on the freely positionable control panel. The biggest advantage of this machine is the possibility of programming different number of pieces of the material to be cut with different lengths without the need of further control of the machine. The feed vice, mounted on the linear guides, is opened on both sides, thus avoiding collisions when cutting uneven material. The minimum residual piece in automatic mode is 180 mm. The basic equipment of the machine includes two saw band speeds, 40 and 80 m/min.
Standard equipment ELMAG BasiCut 275.230 GANC BOMAR metal band saw
- Sturdy cast iron frame
- Vise quick clamping device
- start/stop function
- Carbide saw blade guides
- Band saw blade BI-Metal
Technical data ELMAG BasiCut 275.230 GANC BOMAR metal band saw

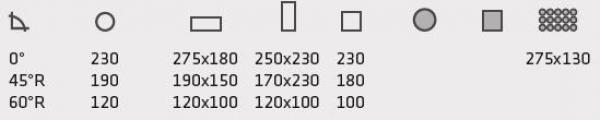

Cutting range max.
275x230 mm
Saw blade length
2,720 mm
Sawband height
27 mm
Saw blade thickness
0.9 mm
Cutting angle
0-60 °
Speed stages
2
cutting speed 1/2
40/80 m/min
Saw blade drive Motor power
1.100 W
Network connection
400/50-60 V/Hz
Inlet height
768 mm
Remaining piece length
180 mm
Length
1,970 mm
Width
2,440 mm
Height
1,650 mm
Weight
500 kg
Highest quality of ELMAG machines
Benefit from a 2-year warranty from ELMAG

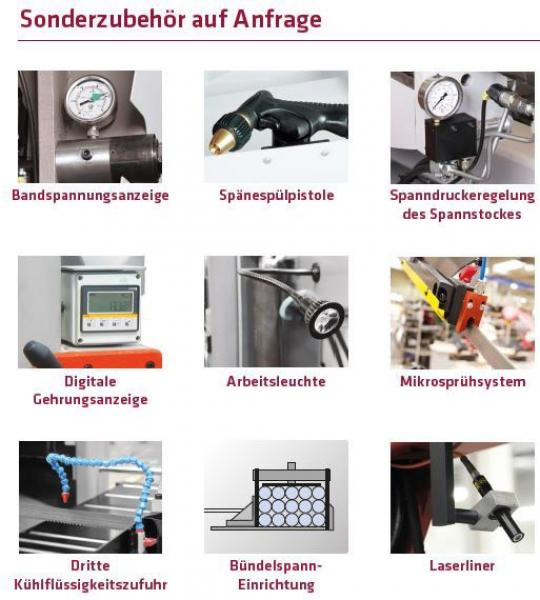

Accessories for ELMAG machines on request
