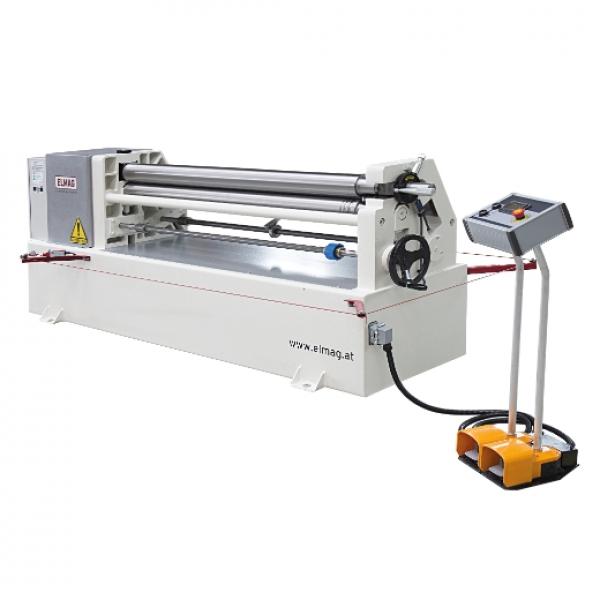

Technical facts ELMAG ASM-S 3100x6,0mm Motorized round bending machine:
- Bending capacity
- Working lengths for standard sheet metal formats, max. 1,600 to 3,100 mm
- Sheet thickness models - 3.0 to 6.0 mm (pre-bending max.) - 4.0 to 7.0 mm (bending max.)
- Smallest possible rolling diameter depending on model 210 to 300 mm
Standard equipment
- Massive machine body made of steel (S 355)

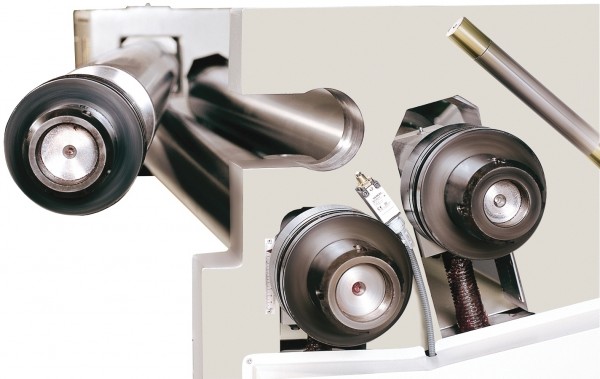

- Induction hardened steel rolls
- Rear roller motor adjustable
- Control panel
- Operating Instructions - CE
Special accessories
- Digital display for rear roller
- Extended rollers
- Profile rolls
- Infinitely variable speed
Technical data ELMAG ASM-S 3100x6,0mm Motorized round bending machine:
- working length: 3100mm
- Top roller diameter: 200mm
- Bending diameter min.: 300mm
- Motor power: 5500W
- Power supply: 400 / 50-60V/Hz
- Control column supply/return: Yes

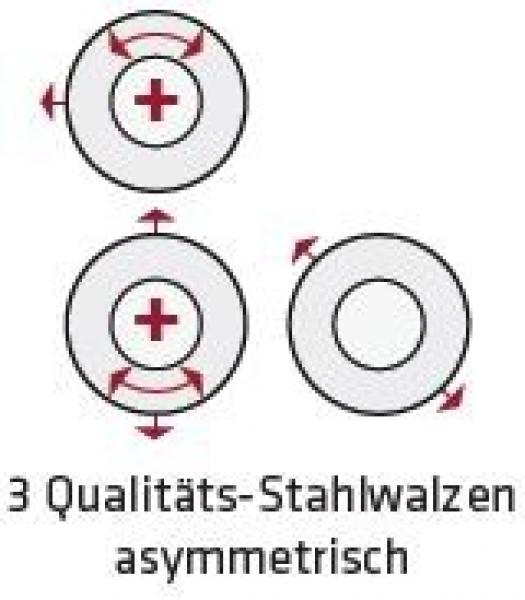

- Quality steel rolls: 3No.
- Drive rollers (+): 2count
- Cone bending device: Yes
- Wire insertion grooves bottom/back roller: -
- length: 4650mm
- width: 950mm
- height: 1250mm
- Weight: 4800kg
Highest quality of ELMAG machines
Benefit from a 2 year ELMAG warranty
Accessories for ELMAG machines on request
