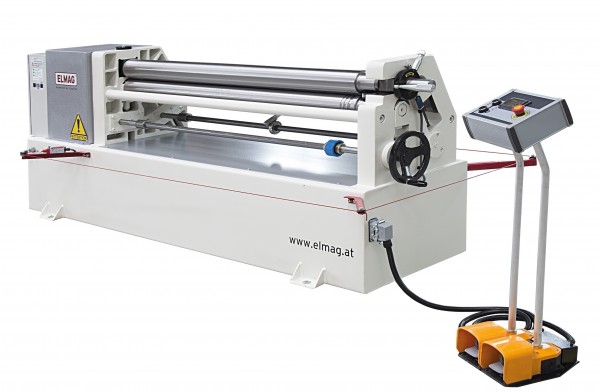

Product Highlights ELMAG ASM-S 2100x6,0mm Motorised Round Bending Machine
BENDING PERFORMANCE DATA ASM MODELS
- Working lengths for standard sheet formats, max. 1,050 to 2,050 mm 1) 2)
- Sheet thickness models:
- 3.0 to 4.0 mm (pre-bending max.) 1) 2)
- 3.5 to 5.0 mm (bending max.) 1) 2)
- Smallest possible roll diameter 150 to 190 mm depending on model
BENDING PERFORMANCE DATA ASM-S MODELS:
- Working lengths for standard sheet formats, max. 1,600 to 3,100 mm 1) 2)
- Sheet thickness models
- 3.0 to 6.0 mm (pre-bending max.) 1) 2)
- 4.0 to 7.0 mm (bending max.) 1) 2)
- Smallest possible roll diameter 210 to 300 mm depending on model
Technical data ELMAG ASM-S 2100x6,0mm Motorised round bending machine
- Working length: 2,100 mm
- Sheet thickness pre-bending max.: 5.0 mm
- Sheet thickness bending max.: 6.0 mm
- Top roll diameter: 170 mm
- Bending diameter min.: 255 mm
- Motor power: 4,000 W
- Mains connection: 400 / 50-60 V/Hz
- Control column forward/reverse: Yes

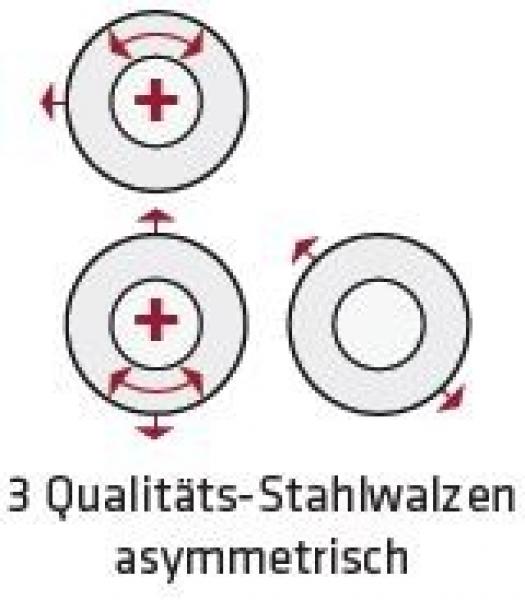

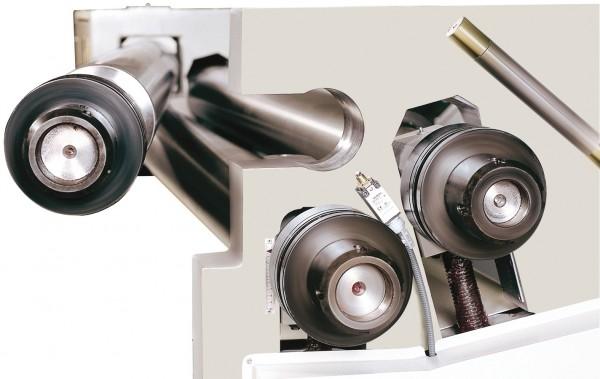

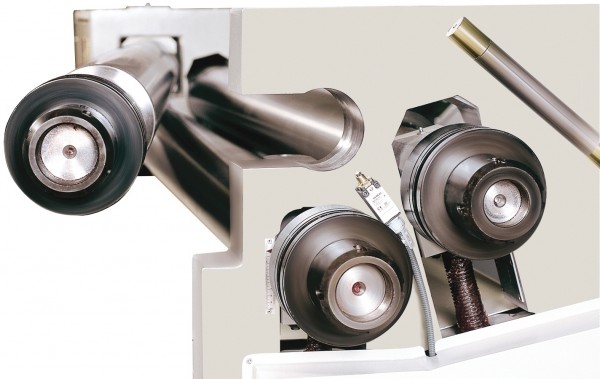

- Quality steel rollers: 3 No. of rollers
- Drive rollers (+): 2 No. of rollers
- Cone bending device: Yes
- Wire insert grooves lower/ rear roller: -
- Length: 3,650 mm
- Width: 820 mm
- Height: 1,130 mm
- Weight: 2,300 kg
Highest quality of ELMAG machines
Benefit from a 2-year warranty from ELMAG
Accessories for ELMAG machines on request
