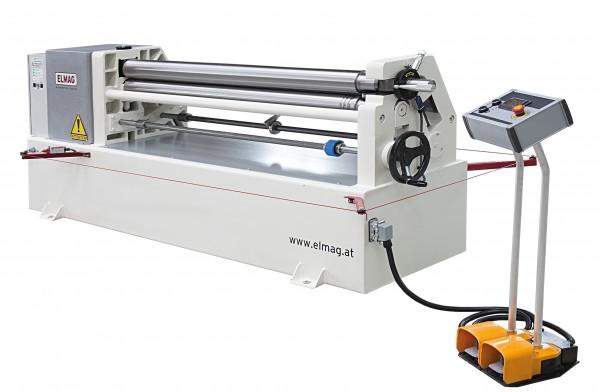

Product Highlights ELMAG ASM 1050x5,0mm Motorised Round Bending Machine
BENDING PERFORMANCE DATA ASM MODELS
- Working lengths for standard sheet formats, max. 1,050 to 2,050 mm 1) 2)
- Sheet thickness models:
- 3.0 to 4.0 mm (pre-bending max.) 1) 2)
- 3.5 to 5.0 mm (bending max.) 1) 2)
- Smallest possible roll diameter 150 to 190 mm depending on model
BENDING PERFORMANCE DATA ASM-S MODELS:
- Working lengths for standard sheet formats, max. 1,600 to 3,100 mm 1) 2)
- Sheet thickness models
- 3.0 to 6.0 mm (pre-bending max.) 1) 2)
- 4.0 to 7.0 mm (bending max.) 1) 2)
- Smallest possible roll diameter 210 to 300 mm depending on model
STANDARD EQUIPMENT
- Robust machine body and roll frame made of cast iron
- Quality steel rolls with very high tensile strength
- Cone bending device for tapered workpieces
- Wire insert grooves on bottom and back roller
- Operating instructions / CE
SPECIAL ACCESSORIES
- Induction hardened steel rollers
- Control panel with rear roller control and digital display
Technical data ELMAG ASM 1050x5,0mm motorised round bending machine
- Working length: max. 1,050 mm
- Sheet thickness pre-bending max.: 4.0 mm
- Sheet thickness bending max.: 5.0 mm
- Top roll diameter: 110 mm
- Bending diameter min.: 150 mm
- Motor power: 2,200 W
- Mains connection: 400 / 50-60 V/Hz
- Control column forward/reverse: Yes

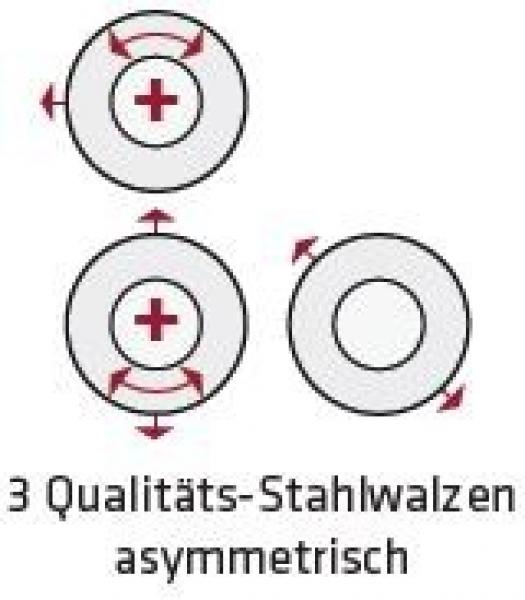

- Quality steel rollers: 3 No. of rollers
- Drive rollers (+): 2 No. of rollers
- Cone bending device: Yes
- Wire insert grooves bottom/back roller: Yes
- Length: 1,820 mm
- Width: 850 mm
- Height: 1,150 mm
- Weight: 1.080 kg
Highest quality of ELMAG machines
Benefit from a 2-year warranty from ELMAG
Accessories for ELMAG machines on request
