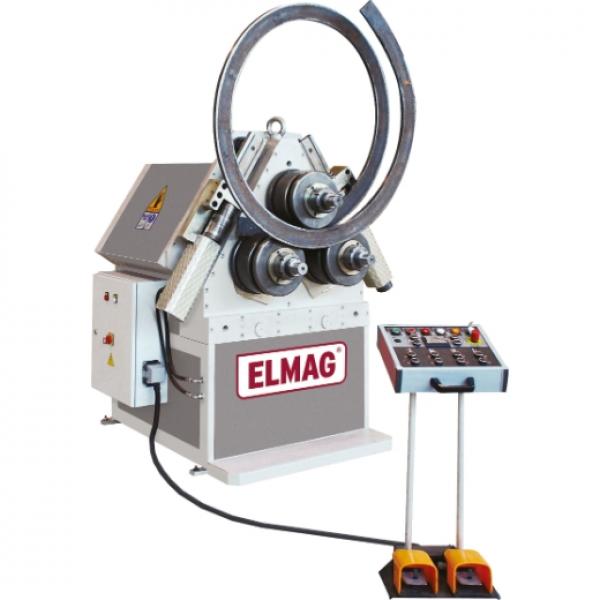

Product Highlights ELMAG APK 81 Hydraulic Ring Bending Machine
Powerful middle class
The APK 61/APK 81 ring bending machines are equipped with a 4,000 or 5,500 watt drive motor. Thanks to an efficient motor brake and an ideally proportioned reduction gear, they enable precise and millimetre-accurate processing of medium and large profile cross-sections. Three drive rollers, including two hydraulically positionable adjustment rollers, provide excellent power transmission for narrow bending diameters, e.g. round steel Ø 35 mm / Ø 600 or Ø 300 mm.
Extensive basic equipment
The APK models largely cover the needs for single and small batch production of simple profiles. Special accessories for special applications and large profiles are available on request.
Design - High Quality
All precision parts such as gears, bending rollers, straightening shafts, etc. are made of high-quality special steel (e.g. roller axles made of alloyed tempered steel 42 CrMo4, hardened and ground).
Upgradeable for series production
With feed and return speeds of 6.4 and 4.2 m/min respectively, the APK drives deliver outstanding performance characteristics. Easy handling, quick adjustability, digital display and, last but not least, the robust machine design make the APK models ideal candidates for series production. Special accessories available to optimise serial use (APK CNC, NC-Control etc.).
Application examples ELMAG APK 81 Hydraulic ring bending machine
- Pipeline construction
- Tank construction
- Plumbers
- Steel construction
- railing construction
- Locksmith's shops
- Forging
- Mechanical engineering
- Plumbing workshops
- Car body construction
- Car workshops
Standard equipment ELMAG APK 81 Hydraulic ring bending machine
- Standard rollers - special steel hardened
- Roller axles - special steel, hardened
- Straightening shafts - special steel, hardened
- Lower roller adjustment hydraulic
- Mechanical adjustment of straightening shaft
- Mobile control panel ER digital / emergency stop
- Double foot pedal forward/backward feed
- Operating instructions / CE
Special accessories ELMAG APK 81 Hydraulic ring bending machine
- Round and tubular steel bending rollers
- Form steel bending rollers
- Angle steel bending rollers
- Angle bending device
- Hydraulic straightening shaft system RW
- Mobile control panel ER digital / RW analogue
- Mobile control panel ER digital / RW digital
- Spiral bending device
- Position indicator/measuring device for profiles
- 2 feed speeds
- Automatic lubrication
- APK CNC control with display
- Playback control (programming)
Technical facts ELMAG APK 81 Hydraulic ring bending machine
- Drive motor 5,500 W

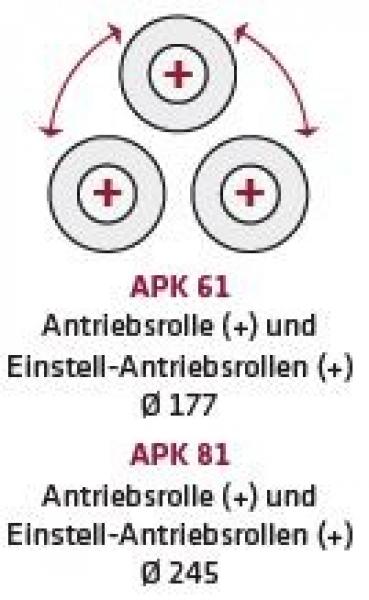

- Three drive rollers Ø 245
- Two adjustment drive rollers hydraulic
- Forward/reverse feed 4.2 m/min
- Directional shaft adjustment mechanical
- High-quality planetary reduction gear
- Slipping clutch as torque limiter
- Electric and hydraulic overload protection
- Robust steel frame S355
- Mobile control panel ERdigital
- Adjusting roller push-button L/R/AUF/AB
- Digital display Adjusting roller
- Emergency stop
- Double foot pedal forward/backward feed
Technical data ELMAG APK 81 Hydraulic ring bending machine
- Roller diameter top: 245mm
- Roller diameter bottom: 245mm
- Axle diameter top: 80mm
- Axle diameter bottom: 80mm
- Adjusting rollers mechanical: -no.
- Adjusting rollers hydraulic: 2No.
- Drive rollers: 3No.
- Vertical set-up: Yes
- Horizontal set-up: Yes
- Drive motor: 5500W
- Adjustment roller hydraulic motor: 1500W
- Hydro drive motor: -W
- Mains connection: 400 / 50-60V/Hz
- Length: 1375mm
- Width: 1040mm
- Height: 1540mm
- Weight: 1600kg
