Product-Highlights ELMAG 8320 JEPSON SUPER HAND DRY CUTTER
Perfect cutting without cooling
Hand Dry Cutter are high-tech metal circular saws for manually guided cutting of tubes, profiles, sheets and grids of steel and non-ferrous metals as well as plastics and composite materials (e.g. sandwich panels).
- Worldwide proven in practice a thousand times over
- Coolant-free, almost burr-free cut: cutting edge material with high wear resistance, 5-fold re-sharpenable
- Very good handling: non-slip ERGO soft grip and light, impact-resistant housing
- Quick cutting depth adjustment
- Optimal cutting: sliding guide marks and infinitely adjustable longitudinal guide
- Practical and clean: with chip container
- Tested safety: saw blade cover, self-closing saw blade protection, safety switch, CE-compliant
Ideal for composite materials
The extremely powerful Super Hand Dry Cutter 8320 is the first circular saw for sandwich panels and composite materials with a cutting depth of up to 120 mm. It saws trapezoidal and sheet metal, shaped profiles and pipes made of steel, non-ferrous metal and plastic: almost all materials and semi-finished products that have to be cut to size or cut to length in metal construction, facade construction or installation operations.

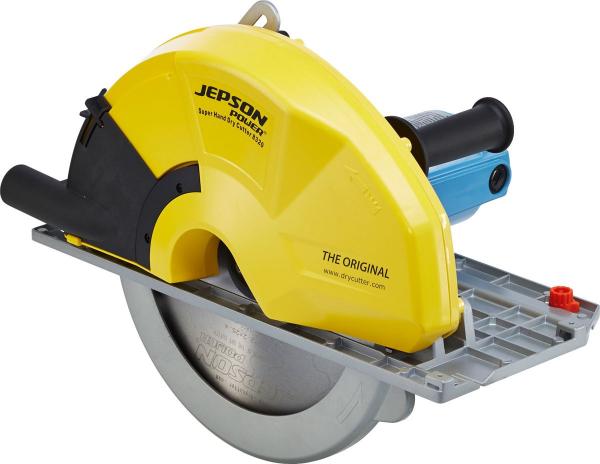

Super Hand Dry Cutter 8320 /84
Modern, powerful hand dry cutter with powerful drive motor and large carbide saw blade. Super light magnesium housing, transport weight with saw blade only 9.5 kg.

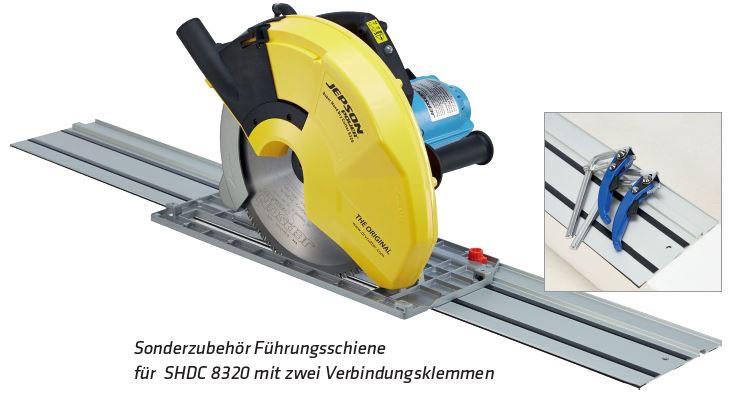

Guide rail for SHDC 8320
Cutting guide for Hand Dry Cutter 8320, ideal for quick and precise cutting of sandwich panels, composites and sheet metal.
- guide rail 1.400 mm
- Two connecting clamps for quick clamping and releasing of the guide rail
LBS saw blade "shock resistant
Ideal for sawing thin-walled materials, metal grids and grates, trapezoidal sheets and cable ducts. At 1.4 mm, the LBS saw blade is considerably thinner than conventional saw blades.
Standard equipment ELMAG 8320 JEPSON SUPER HAND DRY CUTTER
- JEPSON Hand Dry Cutter
- TANITEC HM saw blade THT 320 mm, 84 teeth
- Tools/operating instructions/CE
Application examples ELMAG 8320 JEPSON SUPER HAND DRY CUTTER
- Metal construction
- Mechanical Engineering
- Apparatus engineering
- Plant engineering
- Pipeline construction
- Boiler construction
- Container construction
- Installers
- Car workshops
- Body shop
- Metalworking shops
- Forging
- Plumbing
- Insulation companies
- Construction industry
- Agriculture
- Vocational schools
- Training workshops
- Home Workshops
Technical facts ELMAG 8320 JEPSON SUPER HAND DRY CUTTER
- Super Hand Dry Cutter 8320/84
- HM saw blade THT Ø 230 mm, 84 teeth
- Cutting depth up to 120 mm
- LED overload display
- Cutting to length machine 0
- Integrated chip tilting compartment
- Connection for chip extraction
- Motor power 1.800 W
Technical data ELMAG 8320 JEPSON SUPER HAND DRY CUTTER
- cutting depth max.: 120mm
- Saw blade outer diameter: 320mm
- Speed: 1700 rpm
- Engine power: 1800W
- Power supply: 230 / 50-60V/Hz
- Cable length: 5m
Highest quality of ELMAG machines
Benefit from a 2 year ELMAG warranty
Accessories for ELMAG machines on request
