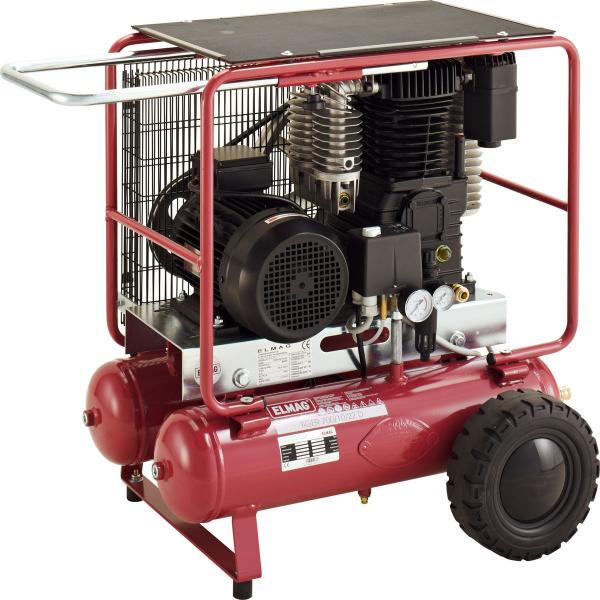

Product Highlights ELMAG 600/10/22 D Assembly Compressor TIGER
TROUBLE-FREE TRANSPORT
High performance and quality of the Profi-Line class, compact design for trouble-free transport and robust technology for demanding construction site use - TIGER assembly compressor is ideally suited for transport-dependent commercial operations that require a powerful and reliable source of compressed air on site.
INTENSIVE CONSTRUCTION SITE USE
Best suited for intensive use on by assembly and carpentry companies, roofers, painters, locksmiths, carpenters. Strong and robust, the TIGER!
STANDARD EQUIPMENT

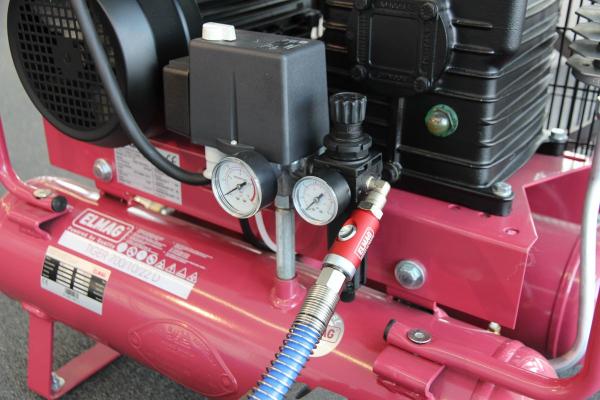

- CONDOR pressure switch
- 2 safety venting couplings for boiler pressure and reduced pressure
- ELMAG filter pressure regulator
Technical facts ELMAG 600/10/22 D Assembly compressor TIGER
- Drive by means of alternating current or three-phase motor
- High efficiency and operational reliability due to V-belt drive
- Two-cylinder compressor with precision high-performance pistons
- Large-dimensioned fan wheel
- Large-surface aftercooling made of die-cast aluminium
- Reduced overall height due to two compactly arranged storage tanks with 2 x 11 litre capacity
- Tyres with comfortable 260 mm rubber wheels
- Hour meter
- Super-compact, powerful '2-stage' compressing two-cylinder units with 3 to 4 kW nominal output
Technical data ELMAG 600/10/22 D Assembly compressor TIGER
- Effective delivery rate: 378 l/min
- Suction capacity: 539 l/min
- Max. Operating pressure: 10 bar
- Oil lubricated: Yes
- Tank volume: 2 x 11 l
- Nominal engine power: 3 kW / 4 PS
- Electrical connection voltage / frequency: 400 V / 50 Hz
- Sound pressure level (4 m): 78 dB(A)
- Compressor speed: 1,400 rpm
- Length: 78 cm
- Width: 65 cm
- Height: 74 cm
- Weight: 67 kg
Highest quality of ELMAG machines
Benefit from a 2-year warranty from ELMAG
Accessories for ELMAG machines on request
