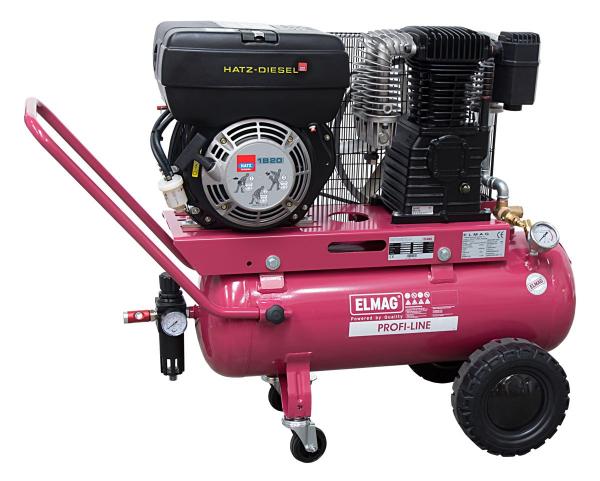

Product Highlights ELMAG 600/10/100 Motor Compressor PROFI-LINE DIESEL
MOTOR COMPRESSORS - FOR COMPRESSED AIR OFF THE MAINS SUPPLY
The optimal solution for all users in trade and industry where compressed air is needed without a power supply.
- On construction sites on roads, bridges,
- canal network, power supply lines
- Gardening & landscaping (e.g.: cemeteries)
- or for installation in assembly & service vehicles.
Technical facts ELMAG 600/10/100 motor compressor PROFI-LINE DIESEL
- Professional HATZ diesel engine with manual start
- Mobile on 100 litre compressed air tank
- Operating pressure 10 bar
- Two-stage compression
- Oil-lubricated, indirectly driven two-cylinder units with cast iron cylinder
- Low unit speed for high duty cycle

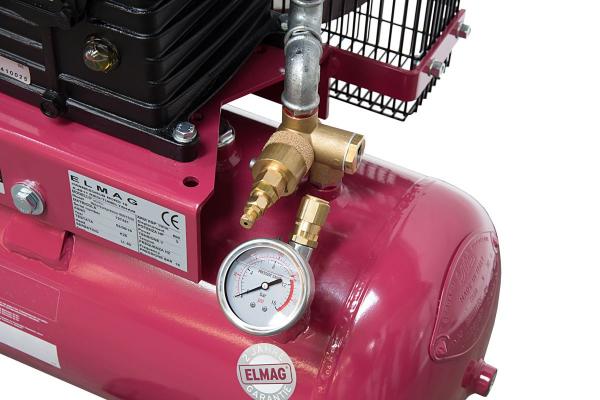

- Standard equipment: Glycerine pressure gauge, safety valve, non-return valve combined with load-idle control, filter pressure regulator, safety venting clutch, solid rubber wheels Ø 250 mm, with swivel castors and brake
Technical data ELMAG 600/10/100 motor compressor PROFI-LINE DIESEL
- Effective delivery rate: 400 l/min
- Suction capacity: 600 l/min
- Max. Operating pressure: 10 bar
- Oil lubricated: Yes
- Tank volume: 100 l
- Nominal engine power: 3.7 kW / 5 hp (HATZ 1B20)
- Sound pressure level (4 m): 79 dB(A)
- Compressor speed: 1,300 rpm
- Length: 125 cm
- Width: 60 cm
- Height: 115 cm
- Weight: 120 kg
Highest quality of ELMAG machines
Benefit from a 2-year warranty from ELMAG
Accessories for ELMAG machines on request
