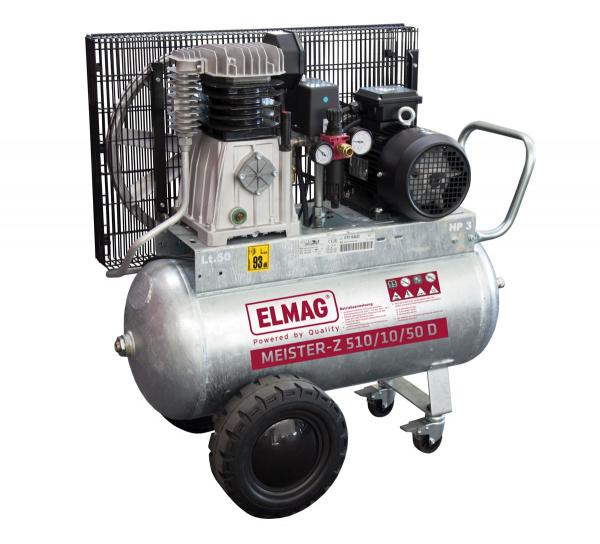

Product Highlights ELMAG 510/10/50 D Compressor MEISTER-Z 'galvanised'
THE PROVEN ELMAG MASTER CLASS
Perfection in technology, function and design, high quality workmanship down to the smallest detail, robust, reliable and durable - it is not for nothing that MEISTER two-cylinder air compressors can be found in many commercial and industrial operations.
They are the first choice when it comes to the flexible, in-house use of compressed air for various craft activities or for powerful continuous operation on construction sites.
For applications with large compressed air requirements, such as painting large surfaces or sandblasting, a tank volume of at least 100 litres is recommended.
Technical facts ELMAG 510/10/50 D compressor MEISTER-Z 'galvanised'
- Operational reliability due to V-belt drive
- Plug-and-play' equipment with two quick-connect couplings

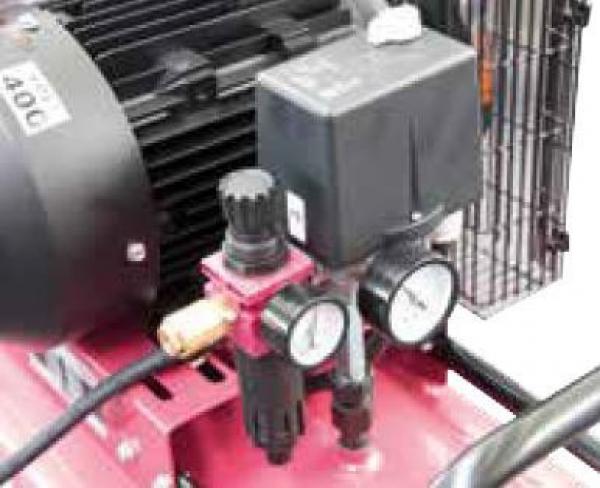

- CONDOR pressure switch for automatic on/off operation
- Motor protection switch
- Tank and system pressure gauges
- Filter pressure reducer 'FRM' with metal protection cage
- Safety valve
- Check valve
- Solid rubber wheels
- Ball valve for condensate drain
- Swivel castors with brake
- Ideal for semi-professional use
- Compact two-cylinder compressor
- Large aftercooler
- Good compressed air quality
- Easy to transport
- With hot-dip galvanised boiler inside and out with enhanced corrosion protection - 15-year boiler warranty
- Boiler coated on the inside (improved corrosion protection)
Technical data ELMAG 510/10/50 D Compressor MEISTER-Z 'galvanised'
- Effective delivery rate: 285 l/min
- Delivery rate according to VDMA 4362, measured at 80 % of the maximum pressure: Yes
- Suction capacity: 460 l/min
- Max. Operating pressure: 10 bar
- Oil lubricated: Yes
- Tank volume: 50 l
- Design: mobile
- Nominal motor power: 2.2 kW / 3 PS
- Electrical connection voltage / frequency: 400 V / 50 Hz V/Hz
- Sound pressure level (4 m): 76 dB(A)
- Compressor speed: 1,150 rpm
- Length: 86 cm
- Width: 42 cm
- Height: 87 cm
- Weight: 58 kg
Highest quality of ELMAG machines
Benefit from a 2-year warranty from ELMAG
Accessories for ELMAG machines on request
