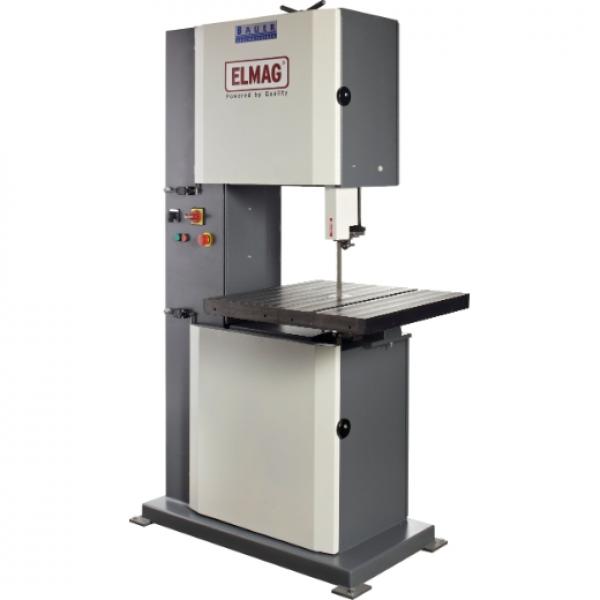

Product Highlights ELMAG 450 V BAUER Vertical Bandsawing Machine
BAUER 450 V / 650 V
Vertical band saws enable the clean execution of corner, contour, notching and special cut-offs in metal plates, sheet metal parts, tubes and profiles Vertical band saws are also suitable for the normal cutting to length of bar material and the accurate cutting of composite and cast materials as well as plastic. Their robust, torsion-resistant design allows high loads and intensive continuous operation - ideal, easy-to-operate machines for metal workshops and mechanical engineering, foundries, tool, sample and model making, material testing, etc.

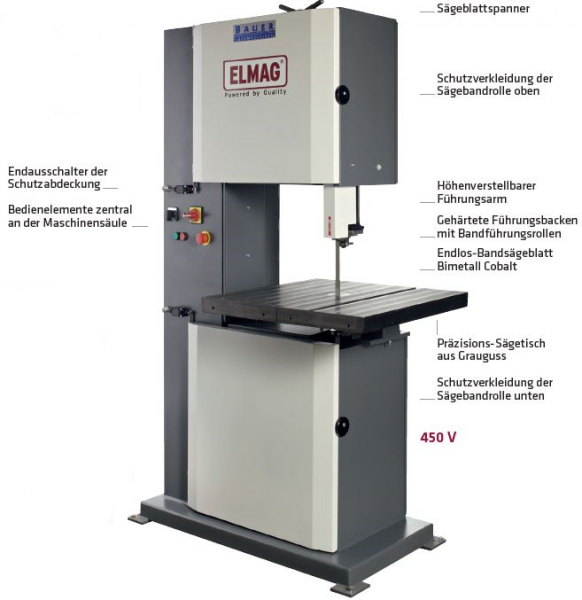

Standard equipment ELMAG 450 V BAUER vertical bandsawing machine
- Bauer V Vertical bandsaw machine
- Saw band roller guides
- Saw band adjustment devices
- Saw band tensioner infinitely adjustable
- Adjustable guide arm
- Hardened guide jaws
- Precision tilting saw table
- High-performance drive
- Central control panel
- Two-stage speed control
- Saw blade covers with limit switches
- Emergency stop/zero voltage release
- Robust sheet steel housing
- Band saw blade bimetal Cobalt
- Tool/operating instructions/CE
Technical Facts ELMAG 450 V BAUER Vertical Bandsawing Machine
- Large cutting area 440x230 or 620x420 mm
- Powerful - powerful drive motor 750 or 1,450 W
- Two cutting speeds 32/64 or 35/70 m/min
- Band saw blade bimetal, saw blade height 3 to 20 resp. 12 to 34 mm
- Constant saw blade tension - with saw blade rollers above and below the saw table and saw blade tensioner
- Precise saw blade guidance for highest cutting accuracy - with adjustable guide arm, hardened guide jaws and adjustable band guide rollers

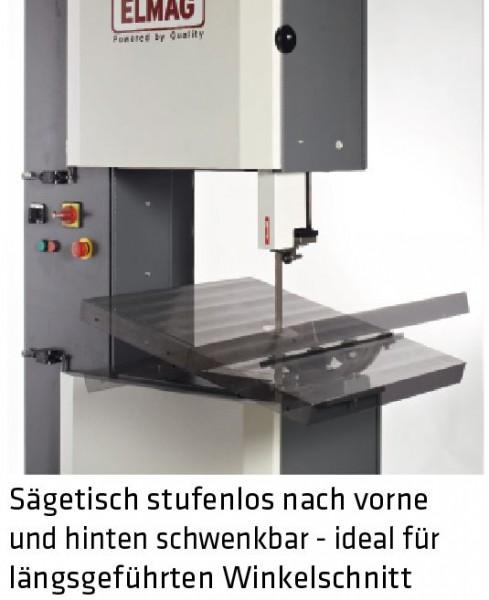

- Infinitely variable tilting of the saw table to the front and back
- Safe to operate - with limit switches on the protective covers, emergency stop, zero voltage release, CE-compliant
Technical Data ELMAG 450 V BAUER Vertical Bandsawing Machine
- Max. cutting area: 440x230mm
- Saw band length: 3400mm
- Saw band height: 6-20mm
- Saw band diameter: 450mm
- Speed steps: 2
- Cutting speed: 1: 32 / 2: 64m/min
- Saw band drive motor power: 1100 / 1400W
- Mains connection: 400 / 50-60V/Hz
- Saw table width: 460mm
- Saw table length: 520mm
- Infeed height: 930mm
- length: 780mm
- Width: 600mm
- Height: 1900mm
- Weight: 370kg
Highest quality machines from ELMAG
Benefit from a 2 year ELMAG warranty
Accessories for ELMAG machines on request
