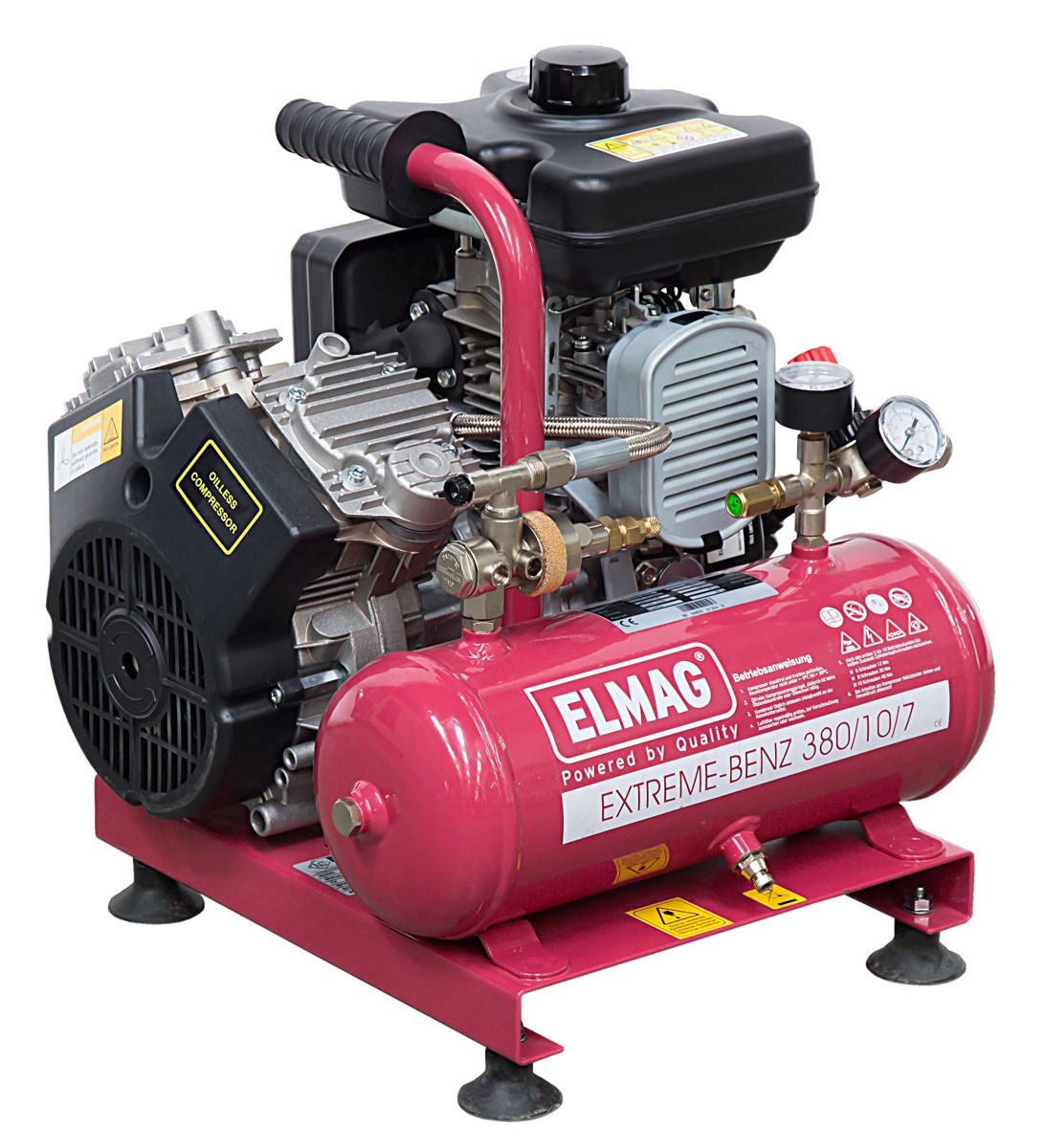

Product Highlights ELMAG 380/10/7 Compressor EXTREME-BENZ
The optimal solution for all users in trade and industry where compressed air without power supply is needed. On construction sites on roads, bridges, sewage systems, power supply lines, gardening & landscaping (e.g. cemeteries, etc.) or for installation in assembly & service vehicles.
PRODUCT DESCRIPTION
The optimal solution for all users in trade and industry where compressed air without power supply is needed. On construction sites on roads, bridges, sewage systems, power supply lines, gardening and landscaping (e.g. cemeteries, etc.) or for installation in assembly and service vehicles.
EXTREME BENZ - OIL-FREE
2-cylinder unit - "oil-free". Equipped with a robust SUBARU petrol engine. Portable compressor for light construction site and assembly work.
Technical facts ELMAG 380/10/7 Compressor EXTREME-BENZ

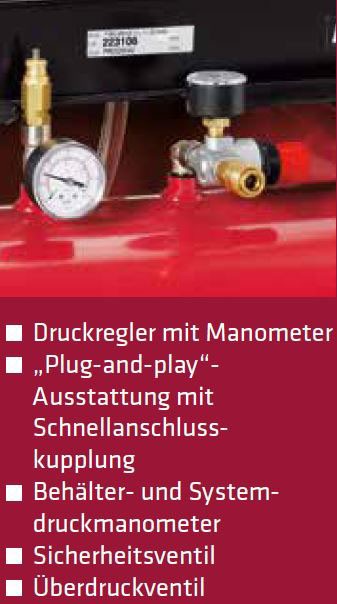

- Pressure regulator with pressure gauge
- Plug-and-play' equipment with quick-connect coupling
- Tank and system pressure gauge
- Safety valve
- Pressure relief valve
- Manual start by cable
- Load or idle operation controlled by special valve (replaces pressure switch)
Technical data ELMAG 380/10/7 Compressor EXTREME-BENZ
- Effective delivery rate: 130 l/min
- Suction capacity: 380 l/min
- Max. Operating pressure: 10 bar
- Oil lubricated: -
- Tank volume: 7 l
- Nominal engine power: 2.2 kW / 3 PS
- Tank capacity: 1.2 l
- Consumption: 1.1 l/h
- Sound pressure level (4 m): 85 dB(A)
- Compressor speed: 2,900 rpm
- Length: 43 cm
- Width: 45 cm
- Height: 45 cm
- Weight: 28 kg
Highest quality of ELMAG machines
Benefit from a 2-year warranty from ELMAG
Accessories for ELMAG machines on request
