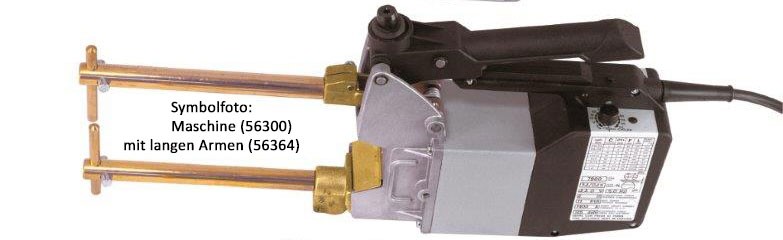

Product Highlights ELMAG 2 kVA 7900 Spot welding tongs
Spot welding guns
Point by point. With steel and stainless steel sheets, nothing works faster than the secure and permanent connection with spot welds.
- Ideal for bodywork, mechanical engineering and metal construction
- Electronic synchronous timer with 2 - 65 periods
- Time control only with current flow at the welding point, therefore very good results when welding on sheet metal with traces of paint, oxidised or galvanised parts
- Pressure adjustment in daN
- Transformer insulation class F
- Capacity with sheet steel 2 + 2 mm
Package set
- Spot welding gun model 7900
- CU electrode arm pair, L=125 mod. 7501
- CU electrode pair Ø 10 mm, L = 90 mod. 7521
- 2 electrode clamping pins mod. 70746
- Electrode grinder
- Maintenance wrench
- Handle
- Power cable 3.8 m
Technical data ELMAG 2 kVA 7900 Spot welding tongs
welding capacity sheet steal max.
2 + 2 mm
welding capacity steal wire max.
6 + 6 mm
working cycle at 2 + 2 mm (10 min at 40 °C)
60 P / h
power rating at 50 % duty cycle
2 kVA
continuous power
1.41 kVA
welding power, max.
13 kVA
duty cycle at max. welding power
1.1 %
electrode arm length min. / max.
125 / 500 mm
electrode arm distance
96 mm
electrode arm diameter
20 mm
electrode diameter
10 mm
electrodes stroke min. / max.
55 / 185 mm
closing pressure, arm length 125
120 daN
closing pressure, arm length 500
38 daN
Connected load
9.5 kVA
anti-surge fuse
16 AT
voltage / phases
400 / 3 V / ~
Mains frequency
50 Hz
Width
90 mm
Depth
370 mm
Height
230 mm
Weight
10.5 kg
Highest quality of ELMAG machines Benefit from a 2 year ELMAG warranty
Accessories for ELMAG machines on request
