ED400FDDIG230V Holzmann lathe

Product Highlights ED400FDDIG230V Holzmann Lathe​

• with leading spindle for thread cutting or automatic longitudinal turning
• Prism bed guides induction hardened and precision ground
• hardened main spindle mounted in adjustable precision tapered roller bearings
• high concentricity of the main spindle
• Speed infinitely variable, easy to read off via digital speed display
• change gears for large thread cutting range supplied as standard
• Wedge strips of the slide guide adjustable without play
• powerful, maintenance-free motor with undervoltage release
• extremely powerful, largely constant torque curve
• Right-left rotation switchable on the control panel
• Tailstock can be moved for taper turning
• Note: Machine runs at half speed when turning backwards.
• 2-axis digital display

Scope of delivery ED400FDDIG230V Holzmann lathe​

• 3-jaw chuck Ø 100mm,
• Quadruple steel holder,
• firm grain tip MK3,
• firm grain tip MK2,
• Chip rear wall,
• Chip tray,

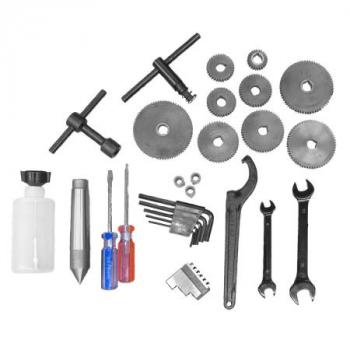

• Change gear set,
• Operating tool

Technical data ED400FDDIG230V Holzmann lathe​

• Motor power S1 in W: 450
• Motor power S6 in W: 630
• voltage: 230 V / 50 Hz
• cable length: 1,7m

• Installation dimension in mm. 940 x 380 x 345
• Bed width in mm: 100

• Center distance in mm: 400
• max. swing diameter bed in mm: 210
• max. swing diameter cross slide in mm: 134
• turning spindle speed in min-1: 50-2500
• Spindle bore in mm: 21
• Spindle mount: MK3 / MT3
• Tailstock cone: MK2 / MT2
• longitudinal feed: 0.089 / 0.147 / 0.198 mm/rev
• travel distance of longitudinal slide in mm: 376
• traverse path cross slide in mm: 80
• Travel of top slide in mm: 55
• quill travel in mm: 55
• Thread Metric in mm/r: 0.5 -3 (14)
• thread inch: 8 - 44 TPI (10)
• max. tool holder: 10
• Gross weight in kg: 77
