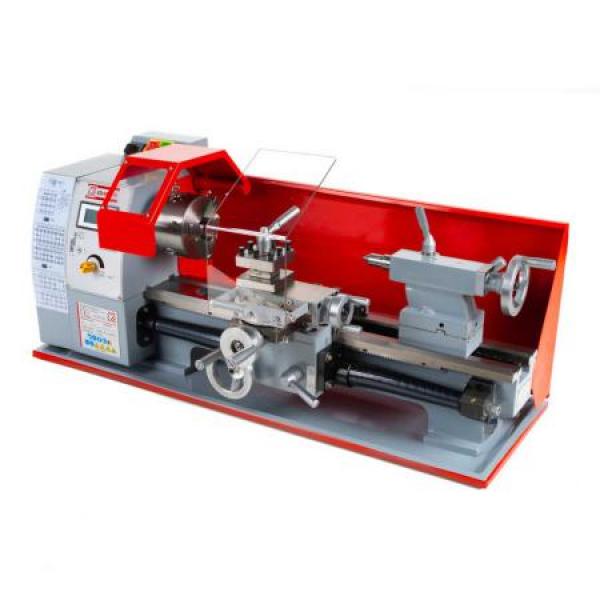

ED400FD230V Holzmann bench lathe

Product Highlights ED400FD230V Holzmann bench lathe​

• with leading spindle for thread cutting or automatic longitudinal turning
• Prism bed guides induction hardened and precision ground
• Hardened main spindle mounted in adjustable precision taper roller bearings
• High concentricity of the main spindle
• Speed infinitely variable, easy to read off via digital speed display
• change gears for large thread cutting range supplied as standard
• Wedge strips of the slide guide adjustable without play
• Powerful, maintenance-free motor with undervoltage release
• extremely powerful, largely constant torque curve
• Right-left rotation switchable on the control panel
• Tailstock can be moved for taper turning
• Note: Machine runs at half speed when turning backwards

Scope of delivery ED400FD230V Holzmann bench lathe​

• 3-jaw chuck Ø 100mm,
• Quadruple steel holder,
• firm grain tip MK3,
• firm grain tip MK2,
• Chip rear wall,
• Chip tray,
• Change gear set,
• Operating tool

Technical data ED400FD230V Holzmann bench lathe​

• Motor power S1 in W: 450
• voltage: 230V / 50Hz
• Motor power S6 in W: 630
• cable length: 1,7 m

• Bed width in mm: 100
• Installation dimensions in mm: 940 x 380 x 345

• Metric thread in mm/r: 0.5-3 (14)
• turning spindle speed in min-1: 50-2500
• max. swing diameter cross slide in mm: 134
• thread inch: 8-44 (10)
• Tailstock cone: MK2/MT2
• Spindle mount: MK3/MT3
• Spindle bore in mm: 21
• travel distance of longitudinal slide in mm: 376
• quill travel in mm: 55
• traverse path cross slide in mm: 80
• Travel of top slide in mm: 55
• Center distance in mm: 400
• max. swing diameter bed in mm: 210
• longitudinal feed: 0.089 / 0.147 / 0.198 mm/ U
• max. tool holder: 10 mm
• Gross weight in kg: 75
