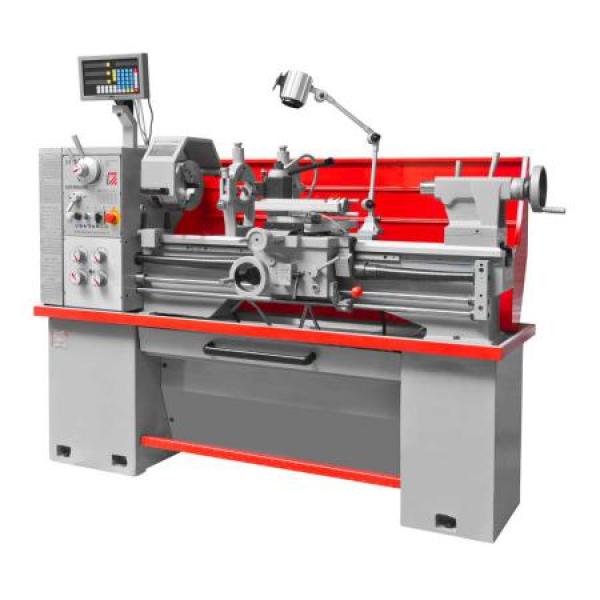

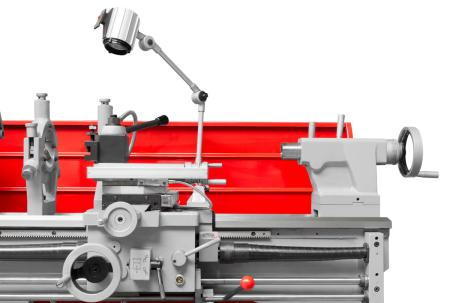

ED1080ADIG400V Holzmann lathe

Product Highlights ED1080ADIG400V Holzmann lathe​

• ideally suited for use in toolmaking, manufacturing and training facilities
• standard oversized spindle bore with Ø 52mm enables machining
• large shaft diameter
• Foot brake - for maximum safety and minimum idle times through immediate spindle stop
• induction hardened and precision ground prism bed guideway
• removable bridge enables the machining of workpieces with
• Diameters up to Ø 520 mm
• maximum running smoothness thanks to precisely processed gear components and
• vibration-resistant casting machine bed
• large digital display for easy operation

Scope of delivery ED1080ADIG400V Holzmann lathe​

• 3-jaw chuck Ø200mm,
• 4-jaw face plate Ø200mm,
• Clamping disk,
• 2 fixed center points MK4,
• Steady and rotating bezel,
• Cast iron substructure,
• Spindle brake,
• Thread gauge,
• Quick-change holder,
• Coolant system,
• Halogen lamp,
• Change gear set

Technical data ED1080ADIG400V Holzmann lathe​

• Motor power S1 in W: 2.2 kW
• voltage: 400V / 3 / 50Hz

• Center distance in mm: 1080
• Centre height in mm: 200
• max. swing diameter bed in mm: 400
• max. swing diameter cross slide in mm: 250
• max. swing diameter without bridge in mm: 520
• Spindle speed in min-1: 65-1810
• Spindle bore in mm: 52
• spindle mount: MK/MT6
• Tailstock cone: MK/MT4
• Traverse path of longitudinal slide in mm: 1080
• Travel path cross slide in mm: 230
• Travel of top slide in mm: 210
• Sleeve travel in mm: 115
• Thread Metric in mm/r: 0.4-7
• Thread inch: 4-60 TPI
• max. tool holder: 20x20 mm
• longitudinal feed: 0.0527-1.2912 mm
• Cross feed: 0.011-0.276 mm
• Gross weight in kg: 750
