ED1000PIDIG400V Holzmann lathe

Product Highlights ED1000PIDIG400V Holzmann lathe​

• with 3-axis digital display
• heavy industrial machine in full casting bed design
• very wide (250mm), inductively hardened and ground machine bed
• Lead screw cover ensures safe working

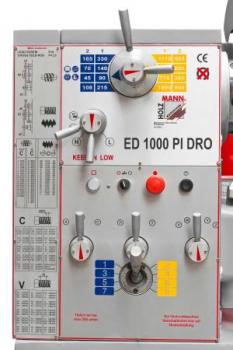

• handy and simple operation due to clear switching unit
• Removable bridge for machining large workpieces
• all guides adjustable via wedge strips
• Camlock spindle mount D1-6, DIN 55029
• The tailstock can be eccentrically adjusted for taper turning
• Oil bath gear with ground and hardened gear wheels
• large spindle bore with a diameter of 52mm
• compl. with foot brake and automatic switch-off for immediate spindle stop
• very large number of different thread pitches
• including coolant system and halogen lamp

Scope of delivery ED1000PIDIG400V Holzmann lathe​

• 3-axis digital display
• 3-jaw chuck Ø200mm
• 4-jaw face plate Ø250mm,
• Clamping disc Ø350mm,
• Reducing sleeve MK6/MK4,
• 2 fixed center points MK4,
• fixed bezel passage 15 - 160mm,
• rotating bezel passage 14 - 70mm,
• Cast iron base, spindle brake,
• Splashback,
• Lathe chuck protection,
• Micrometer longitudinal stop,
• Thread gauge,
• 4-fold steel holder,
• Coolant system,
• Halogen lamp,
• Change gear set,
• Operating tool

Technical details ED1000PIDIG400V Holzmann lathe​

• Motor power S1 in W: 3300
• Motor power S6 in W: 4600
• voltage: 400V

• Thread inch: 72-2
• Thread Metric in mm/r: 0.2-14
• max. tool holder: 25mm
• Spindle speed in min-1: (16) 45-1800
• max. swing diameter without bridge in mm: 590
• max. swing diameter cross slide in mm: 250
• Tailstock cone: MK4/MT4
• spindle mount: MK6/MT6
• Spindle bore in mm: 52
• Traverse path of longitudinal slide in mm: 120
• Cross feed: 0.025-0.85
• longitudinal feed: 0.05-1.7
• Sleeve travel in mm: 120
• Travel path cross slide in mm: 210
• Center distance in mm: 1000
• max. swing diameter bed in mm: 410
• Centre height in mm: 205

• Gross weight in kg: 1.384
