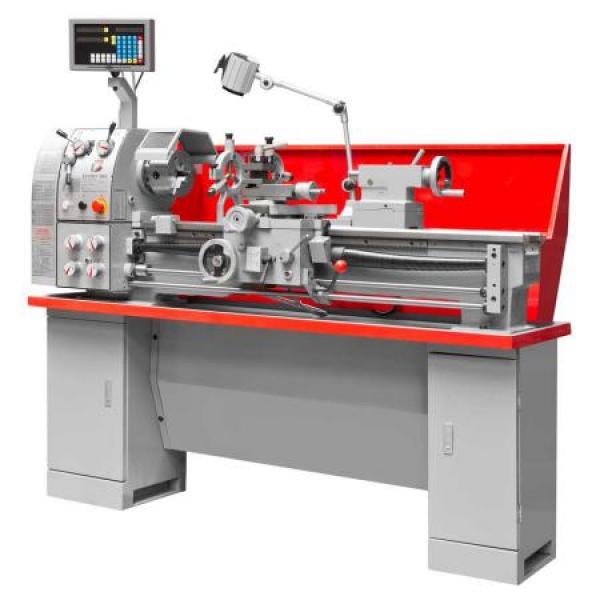

ED1000NDIG400V Holzmann lathe

Product Highlights ED1000NDIG400V Holzmann lathe​

• ideal machine for locksmith's shops, workshops and schools
• simple and quick speed change by means of gear shift
• heavily ribbed prism bed made of grey cast iron inductively hardened and ground
• Bridge can be removed, enables the machining of large workpieces
• hardened and ground main spindle ensures high concentricity
• gearwheel and feed gear running in an oil bath ensure a long service life
• Guide and feed spindle can be easily switched off
• Guides easily adjustable by means of wedge strips
• 4-fold steel holder for clamping several turning irons
• Hardened and ground gear wheels ensure absolutely smooth running
• incl. slip clutch, halogen lamp and spindle cover
• CAMLOCK spindle holder D1-4, DIN 55029
• large digital display for easy operation

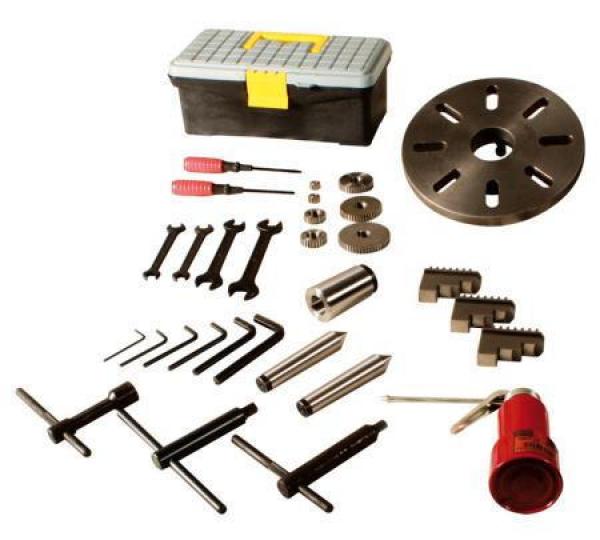

Scope of delivery ED1000NDIG400V Holzmann lathe​

• 3-jaw chuck with interchangeable jaws Ø160 mm,
• Clamping disk,
• Feeder,
• Machine base,
• Splashback,
• fixed bezel,
• rotating bezel,
• Chip tray,
• 4-fold steel holder,
• Change gear set,
• 2x fixed tips MK3,
• Thread gauge,
• Operating tool,
• Reduction MK5/MK3,
• Halogen light

Technical data ED1000NDIG400V Holzmann lathe​

• Motor power S1 in W: 1100
• Motor power S6 in W: 1500
• voltage: 400V

• Bed height in mm: 260
• Bed width in mm: 181

• Thread inch: 4-60
• Thread Metric in mm/r: 0.7-7
• Spindle speed in min-1: 65-1810
• max. swing diameter without bridge in mm: 450
• Travel of top slide in mm: 80
• Travel path cross slide in mm: 160
• max. swing diameter cross slide in mm: 198
• Tailstock cone: MK3/MT3
• spindle mount: MK5/MT5
• Spindle bore in mm: 38
• Cross feed: 0.017-0.276
• Longitudinal feed: 0.079-1.291
• Center distance in mm: 1000
• max. swing diameter bed in mm: 332
• Centre height in mm: 165
• Gross weight in kg: 616
