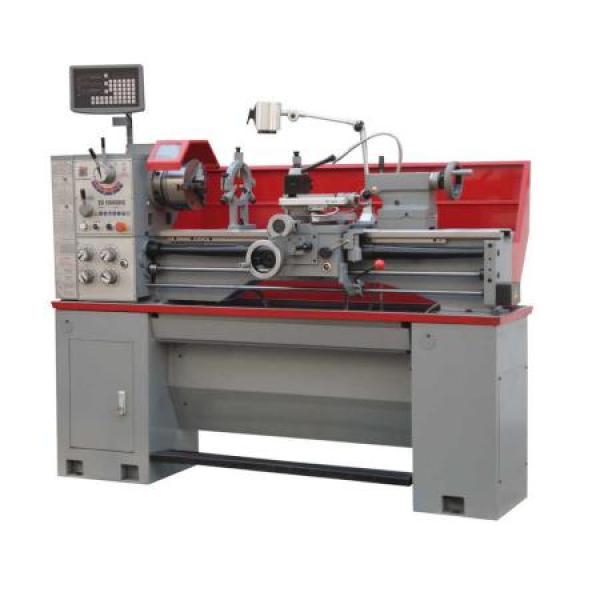

ED1000GDIG400V Holzmann lathe

Product Highlights ED1000GDIG400V Holzmann lathe​

• with gear shifting
• Versatile, particularly value-stable lead and feed spindle lathe
• ideally suited for use in toolmaking, manufacturing and training facilities
• standard oversized spindle bore with Ø 52mm allows machining of large shaft diameters
• electromagnetic foot brake - for maximum safety and minimum idle times through immediate spindle stop
• induction hardened and precision ground prism bed guideways
• Highest running smoothness thanks to precisely processed gear components and vibration-resistant casting machine bed
• gear and main spindle hardened and precision ground, running in oil bath
• dynamically balanced main spindle, high concentricity of the spindle nose (< 0.009mm)
• simple and quick speed change by means of gear shift
• Camlock D1-5 spindle mount according to DIN 55029
• Tailstock can be moved +/- 5mm for taper turning
• Carriage guides easily adjustable by means of tapered strips
• The experienced user can choose from 32 metric (0.45-10mm) and
• 20 inch thread pitches (2.25-40 Gg/1") freely selectable
• large digital display for easier operation

Scope of delivery ED1000GDIG400V Holzmann lathe​

• 3-jaw chuck 200mm,
• 4-jaw face plate Ø 200mm with reversible jaws,
• Feed guard cover,
• Clamping disc Ø 250mm,
• 2x fixed center punch MK4,
• Reducing sleeve MK 6/4 ,
• fixed bezel,
• rotating bezel,
• Machine halogen lamp,
• Chip back wall,
• Coolant system,
• Base frame with foot brake,
• 1 set of change gears,
• Operating tools

Technical data ED1000GDIG400V Holzmann lathe​

• Motor power S1 in W: 1500
• Motor power S6 in W: 2100
• voltage: 400V

• Bed height in mm: 305
• Bed width in mm: 187

• Thread inch: 2.25-40
• Thread Metric in mm/r: 0.45-10
• max. tool holder: 20x20mm
• Spindle speed in min-1: 70-1900
• max. swing diameter without bridge in mm: 470
• max. swing diameter cross slide in mm: 198
• Spindle mount: MK6
• Spindle bore in mm: 52
• Traverse path of longitudinal slide in mm: 810
• Longitudinal feed: (16) 0.078-1.044
• Sleeve travel in mm: 100
• Traverse path cross slide in mm: 190
• Travel of top slide in mm: 88
• Center distance in mm: 1000
• max. swing diameter bed in mm: 360
• Centre height in mm: 180
• Gross weight in kg: 680
