ED1000FBDIG400V Holzmann lathe

Product No.:
ED1000FBDIG400V
2-4 days 2-4 days (abroad may vary)
  • Spare parts supply
  • Top quality
  • Happy customers
  • Secure payment
  • Authorized dealers

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
635 kg per piece
7.830,90 EUR

19% VAT excl. Shipping costs

Ask about product
Description

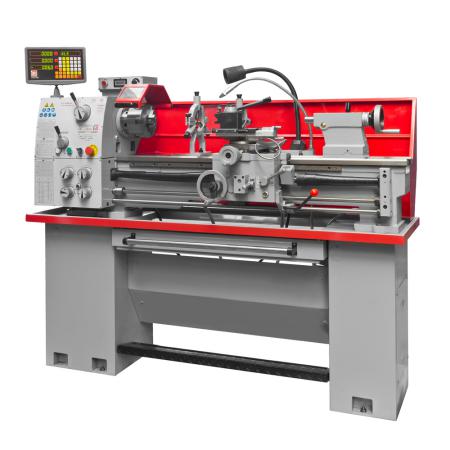

Product Highlights ED1000FBDIG400V Holzmann lathe​

  • Versatile, particularly value-stable lead and feed spindle lathe
  • ideal for use in toolmaking, manufacturing or training facilities
  • electromagnetic foot brake - for maximum safety and minimum downtime due to immediate spindle stop
  • induction hardened and precision ground prism bed guideway
  • Removable bridge enables the machining of workpieces with diameters up to Ø 476 mm
  • gear and main spindle hardened and precision ground, running in oil bath
  • Speed infinitely variable via frequency converter, comfortable to read off via digital speed display
  • including cooling, lamp and quick change holder
  • large digital display for easy operation

Technical data ED1000FBDIG400V Holzmann lathe​

Engine specifications:​
  • Motor power S1 in W: 1.5 kW
  • voltage: 400V / 3 / 50Hz
Lathes:​
  • Center distance in mm: 1000
  • Centre height in mm: 165
  • max. swing diameter bed in mm: 330
  • max. swing diameter cross slide in mm: 198
  • max. swing diameter without bridge in mm: 450
  • Spindle speed in min-1: 70-2000
  • Spindle bore in mm: 40
  • spindle mount: MK/MT5
  • Tailstock cone: MK/MT3
  • longitudinal feed: 0.053-1.29 mm
  • Cross feed: 0.013-0.31 mm
  • Travel path of longitudinal slide in mm: 760 mm
  • Travel path cross slide in mm: 130 mm
  • Travel of top slide in mm: 75 mm
  • Sleeve travel in mm: 100
  • Thread Metric in mm/r: 0.4-7
  • Thread inch: 4-60 TPI
  • max. tool holder: 14x14 mm
  • Gross weight in kg: 635
