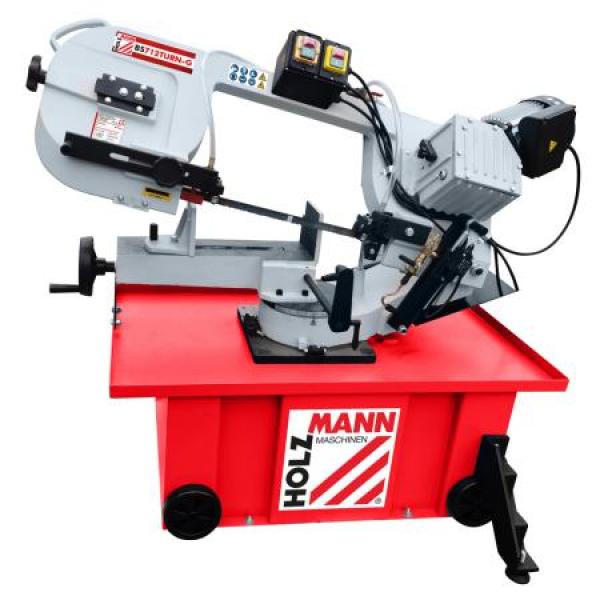

BS712TURNG400V Holzmann metal band saw

Product Highlights BS712TURNG400V Holzmann metal band saw​

• Metal band saw with gear for band speed adjustment (3 steps)
• space-saving machine due to swivel cutting arm
• automatic end stop
• solid grey cast iron machine with ball bearing saw blade guide
• equipped with metal chip separator and coolant pump and tank (25W; 10l)
• Lowering speed continuously adjustable via hydraulic cylinder
• professional swivelling vice and workpiece stop

Scope of delivery BS712TURNG400V Holzmann metal band saw​

• Bimetal saw blade (2360 x 20 x 0.9 mm),
• Driving equipment,
• Workpiece stop

Technical data BS712TURNG400V Holzmann metal band saw​

• Motor power S1 in W: 1100
• voltage: 400V / 3 / 50Hz

• Installation dimensions in mm: 1250 x 985 x 910
• Gross weight in kg: 201

• Cutting capacity round Ø 90° in mm: 205
• Cutting capacity round Ø 45° in mm: 140
• Cutting capacity round Ø -45° in mm: 150
• Cutting capacity LxH 90° in mm: 215 x 205
• Cutting capacity LxH 45° in mm: 140 x 90
• Cutting capacity LxH -45° in mm: 100 x 200

• Saw blade in mm: 2360 x 20 x 0,9
• Saw band speed in m/min: 39 / 55 / 67

• Sound power level in dB(A): 82.8
• Sound pressure level in dB(A): 72.8
