BS275TOP400V Holzmann metal band saw

Product highlights BS275TOP400V Holzmann metal band saw​

• precise metal band saw in heavy cast iron design
• powerful and durable 2-speed gear drive
• The saw bow can be swivelled up to 60° for mitre cuts
• ball-bearing 5-point saw band guide with quick adjustment, automatic limit switch
• Robust vice made of grey cast iron with eccentric clamping system and workpiece stop
• Hydraulic back-pressure cylinder for infinitely variable lowering speed
• Torsion-resistant saw bow and robust overall construction ensure smooth, vibration-free running and maximum cutting accuracy

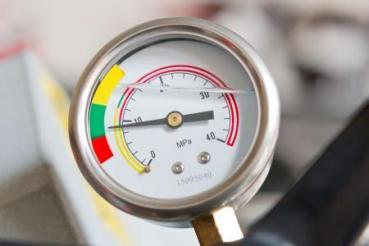

• Manometer for display of saw blade tension

Technical data BS275TOP400V Holzmann metal band saw​

• Motor power S1 in W: 1.5 kW
• voltage: 400V / 3 / 50Hz

• swivel range: 0°-60
• Gross weight in kg: 235

• Cutting capacity round Ø 90° in mm: 225
• Cutting capacity round Ø 45° in mm: 160
• Cutting capacity round Ø 60° in mm: 100
• Cutting capacity LxH 90° in mm: 200x200
• Cutting capacity LxH 45° in mm: 160x160
• Cutting capacity LxH 60° in mm: 100x100

• saw blade in mm: 2480x27x0,9
• Saw band speed in m/min: 37.5 / 75
