Product Highlights BF50DIG400V Holzmann milling machine 3 axis Digi
- Powerful and cost-effective - perfect for professional use.
- automatic feed on x-axis and automatically adjustable drill head
- equipped with 3-axis digital display and control panel with swivel arm
Scope of delivery BF50DIG400V Holzmann milling machine 3 axes Digi
- 3-axis digital display,
- Hoist motor f. Height adjustment of the milling head,
- Milling table feed,
- Extraction spindle M12,
- Reduction MK2/3,
- Taper shank for drill chuck,
- keyless drill chuck Ø 1-13mm,
- Thorn,
- T-slot screw M12x55,
- Drift wedge,
- Wrench 22-24,
- Oil press

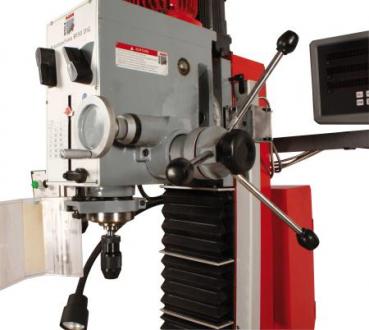

Photo incl. machine stand BF 50DIGMS (optional)
Technical data BF50DIG400V Holzmann milling machine 3 axis Digi
Motor data:
- Motor power S1 in W: 800-1500
- Motor power S6 in W: 1100-1500
- Speed in min-1
- I:75/180/280/600/100071600 /
- II:150/360/560/1200/2000/3200
- voltage: 400V
General dimensions:
- Throat in mm: 285
- Table size in mm: 800x240
Technical specification:
- X-axis travel in mm: 450
- Y-axis travel in mm: 170
- Head tilt: +/- 90°
- T-slot size in mm: 14
- max. diameter of finger cutter in mm: 32
- max. face milling cutter diameter in mm: 80
- spindle stroke in mm: 130
- max. drilling capacity cast iron in mm: 45
- max. drilling capacity steel in mm: 32
- Drilling spindle holder: MK4
- Z-axis travel in mm: 460
- Gross weight in kg: 400
