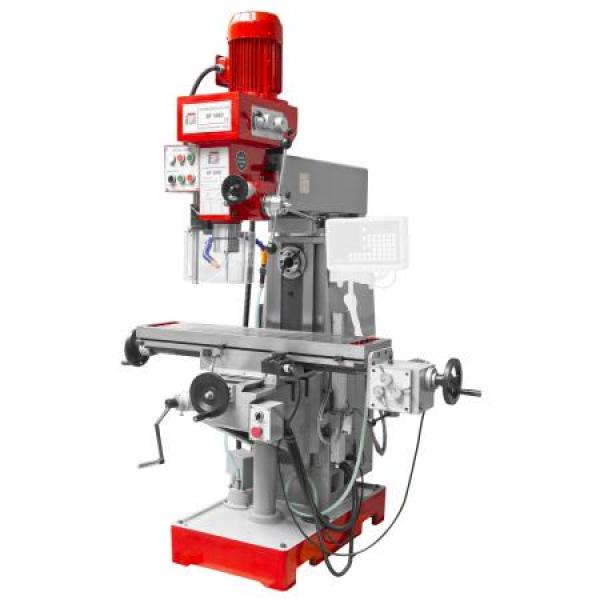

BF500D400V Holzmann universal milling machine 2 milling spindle

Product Highlights BF500D400V Holzmann universal milling machine 2 milling spindle​

• ATTENTION: WITHOUT DIGITAL DISPLAY!
• heavy and vibration-absorbing cast design
• robust and swivelling (+90° -90°) vertical milling head with gear shift
• Oil bath gears with ground, hardened gear wheels
• left- right rotation standard
• Tapping up to max. M16 possible
• Sleeve feed via three-hand lever and fine feed
• solid and large cross table with 14mm T-slots for mounting a vice etc.
• automatic feed of the X-axis with speed adjustment via gear transmission
• automatic and adjustable limit switch-off of the X-axis
• Dovetail guides of the table adjustable by wedge strips
• including coolant unit and halogen lamp
• including additional horizontal spindle
• quick and easy conversion to horizontal milling

Scope of delivery BF500D400V Holzmann universal milling machine 2 milling spindle​

• Coolant device,
• Feed rate X/axis,
• 1x milling shaft 22mm,
• 1x milling shaft 27mm,
• Collet set 8 pcs. (4,5,6,8,10,14,12,16mm),
• Drill chuck 1-16mm (B18),
• 1xMK2 - 1xMK3 - 1xB18 exposure,
• Professional vice 160mm jaw width,
• Halogen lamp

Technical data BF500D400V Holzmann universal milling machine 2 milling spindle​

• Motor power S1 in W: 850 / 1500
• voltage: 400V

• Throat in mm: 260-695
• Table size in mm: 1000 x 240

• Head tilt: 90°
• max. drilling capacity in mm: ø30
• Vertical milling spindle speed in min-1: (8) 115-1760
• Drilling spindle holder: MK/MT4
• Milling spindle mount: ISO40
• Horizontal milling spindle speed in min-1: (9) 60-1350
• Z-axis travel in mm: 400 (250)
• Y-axis travel in mm: 220
• X-axis travel in mm: 560
• max. distance spindle-table in mm: 355
• Motor power horizontal spindle in kW: 1,5
• quill stroke in mm: 120
• Gross weight in kg: 1.060
