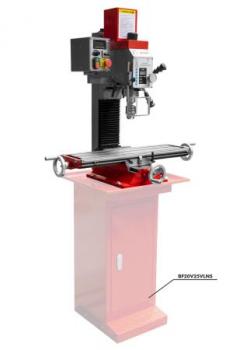

Product Highlights BF25VLN230V Holzmann milling machine MK3, XL table
- XL cross table (700x180mm)
- variable speed control with digital speed display
- digital drilling depth display with zero function
- Left - right rotation as standard
- Dovetail guide of the cross table and drill head
- swiveling gear milling head extends the range of applications
- Fine adjustment by means of handwheel
- Three-arm lever for feed during drilling
- high-quality cross table with measuring scale and stops
- ideal for training workshops, precision mechanics and hobbyists
This product corresponds to filter class B and must be protected according to EMC when operating in mixed or residential areas.
Scope of delivery BF25VLN230V Holzmann milling machine MK3, XL table
- Drill chuck 3-13mm,
- digital speed display,
- digital drilling depth display,
- Tightening spindle M12,
- Operating tool
Technical data BF25VLN230V Holzmann milling machine MK3, XL table
Motor data
- Motor power S1 in W: 600
- cable length: 1,7 m
- voltage: 230V
General dimensions
- Throat in mm: 160
- Table size in mm: 700 x 180
- Payload in kg: 55
- Installation dimensions in mm: 990 x 590 x 908
Technical specification
- Z-axis travel in mm: 265
- Head tilt: +/- 90°
- T-slot size in mm: 12
- max. diameter of finger cutter in mm: 16
- max. face milling cutter diameter in mm: 63
- max. drilling capacity steel in mm: ø 13
- milling spindle speed in min-1: 50-2250
- Drilling spindle mount: MK3 / MT3 (M12)
- Y-axis travel in mm: 165
- X-axis travel in mm: 480
- max. distance spindle-table in mm: 315
- quill stroke in mm: 50
- Gross weight in kg: 141
