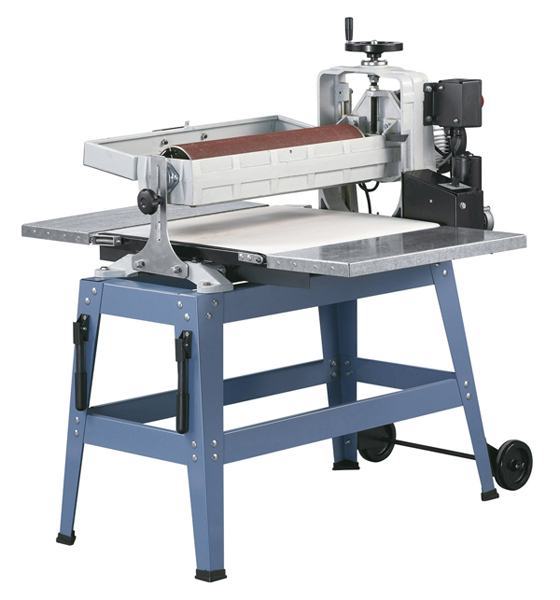

Bernardo ZSM 560 - 230 V Cylinder grinding machine
Properties Bernardo ZSM 560 - 230 V Cylinder grinding machine
- Set variable conveyor belt speed
- Suitable for major commercial grinding abrasive cloths
- Scale ensures precise height adjustment of sanding unit
- Handwheel and scale allow for accurate adjustment of the sanding unit to thickness of workpiece
- Complete with dust port to connect an dust collector for a clean workplace
- Powerful motor guarantees best results
- When side support not in use machine suitable for double the grinding width (eg. for frames etc.)
Standard accessories Bernardo ZSM 560 - 230 V Cylinder grinding machine:
- Sanding belt grit 100
- Table extension on both sides
- Stand with rollers
Technical specifications Bernardo ZSM 560 - 230 V Cylinder grinding machine:
|
Max. sanding widht |
560 (1120 mm) |
|
Min. sanding length |
60 mm |
|
Workpiece thickness, min./max. |
5 - 80 mm |
|
Table size (L x W) |
500 x 580 mm |
|
Both-sided table extension (L x W) |
245 x 580 mm |
|
Working height |
695 mm |
|

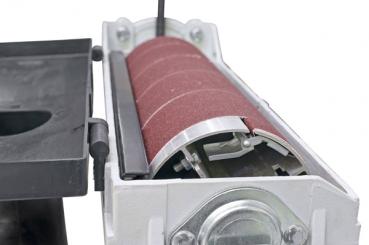

Sanding roller |
Ø 130 x 565 mm |
|
Feed stepless |
0,5 - 3 m/min |
|
Speed |
1420 rpm |
|
Dust extraction outlet |
100 mm |
|
Motor power |
1,5 kW (2,0 HP) |
|
Voltage |
230 V |
|
Machine dimension (W x D x H) |
1100 x 1065 x 1170 mm |
|
Weight approx. |
110 kg |
