Bernardo Woodturning Machine HCL 1200
The HCL 1200 lathe features an electronic, steplessly adjustable speed setting as part of the standard accessoires which allows ideal adjustment to each workpiece. This model is predominantely used among experienced, high-level amateurs.
Features Bernardo Woodturning Machine HCL 1200
- Quick clamping lever ensures fast clamping of tailstock to machine bed
- Outboard turning attachment optionally available for processing of oversize workpieces

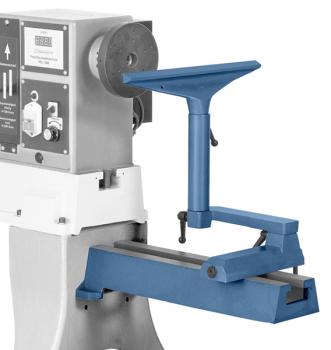

- Includes steel tool rest, easily adjustable for various workpiece diameters
- Heavy cast-iron construction eliminates vibrations
- Digital display allows for convenient adjustment of speed settings
- Comes complete with right and left turning device
- Delta-frequency inverter ensures variable speed adjustment with optimal torque
- Precisely bedded spindle ensures high concentricity
- Smooth running, powerful DC drive, steplessly adjustable
Standard accessories Bernardo Woodturning Machine HCL 1200
- Tool rest 360 mm
- Face plate 150 mm
- Live center
- Spore drive center
- Frequency inverter
- Tools
Technical specifications Bernardo Woodturning Machine HCL 1200
| Distance between centers | 1200 mm |
| Working diameter |
|
| - over guideway | 450 mm |
| - over support | 350 mm |
| Spindle speed, stepless |
0 - 1300 rpm |
| Speed steps | stepless, 2 steps |
| Spindle thread | M 33 x 3,5 mm |
| Tailstock |
|
| Taper of tailstock sleeve | MT 2 |
| Travel of tailstock sleeve | 110 mm |
| Motor power output S1 100% | 1,5 kW (2,0 HP) |
| Motor power input S6 40% | 2,2 kW (3,0 HP) |
| Voltage | 230 V |
| Machine dimension (W x D x H) | 2100 x 550 x 1300 mm |
| Weight approx. | 186 kg |
