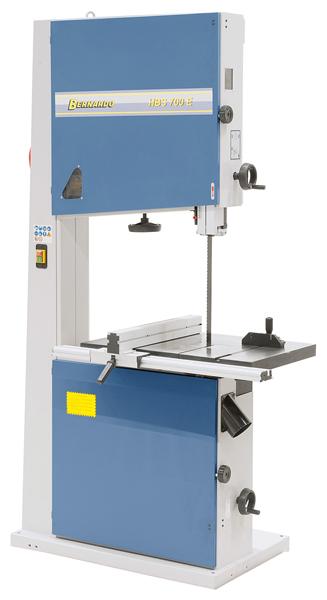

Bernardo wood bandsaw HBS 700 E
Properties Bernardo wood bandsaw HBS 700 E
- Cutting height adjustment via gear rack with mm-scale using a handwheel

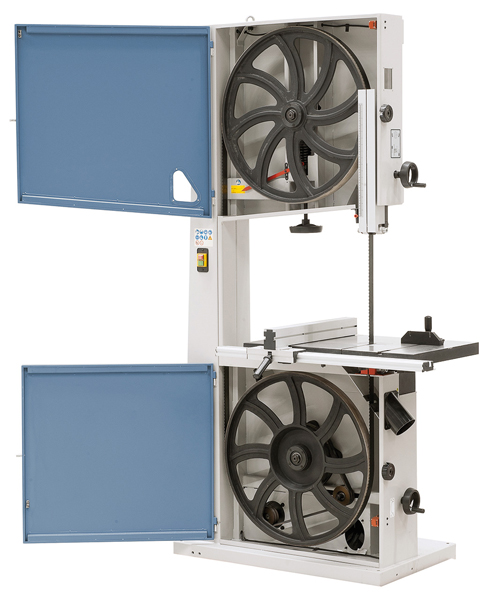

- Flywheels aut of cast iron with rubber coating and chip brush
- Serially with 2 dust extraction outlets (diam. 100 mm) for an optimal dust extraction
- Torsion-free machine body guarantees for a smooth and precise run
- Generously dimensioned cast iron table, tiltable from -5° to +45°
- Inspection window with indication of the blade tension for the respective bandsaw blade width
- Easy adjustable aluminium rip fence with quick clamping system and integrated loupe
- Including limit switch for automatic shut-down at opening of the blade covers
- High-power drive motor allow handling of bigger workpieces
Standard accessories Bernardo wood bandsaw HBS 700 E:
- Bandsaw blade
- Rip fence with loupe
- Mitre fence
- Cast iron flywheels
- Precision 3-roller bandsaw blade guiding
- Motor incl. brake
- Push stick
- Tools
Technical specifications Bernardo wood bandsaw HBS 700 E:
|
Cutting width |
700 mm |
|
Cutting height |
430 mm |
|
Blade dimension |
5020 x 38 x 0,65 - 2 TPI |
|
Blade width |
19 - 40 mm |
|
Cutting speed |
1080 m/min |
|
Table size |
640 x 500 mm |
|
Table extension |
150 x 500 mm |
|
Table height |
950 mm |
|
Tilting table |
-5° to +45° |
|
Dust extraction outlet |
2x 100 mm |
|
Motor power output S1 100% |
4,0 kW (5,0 HP) |
|
Motor power input S6 40% |
5,5 kW (7,5 HP) |
|
Voltage |
400 V |
|
Machine dimension (W x D x H) |
1300 x 900 x 2220 mm |
|
Weight approx. |
311 kg |
