Bernardo wood bandsaw HBS 510 - 230 V
Properties Bernardo wood bandsaw HBS 510 - 230 V
- Big dimensioned working table with grounded surface and T-slot
- Massive cast iron flywheels for smooth run
- Easy adjustable aluminium rip fence with quick clamping system and integrated loupe
- Tiltable working table for mitre cuts from 0° to 45°

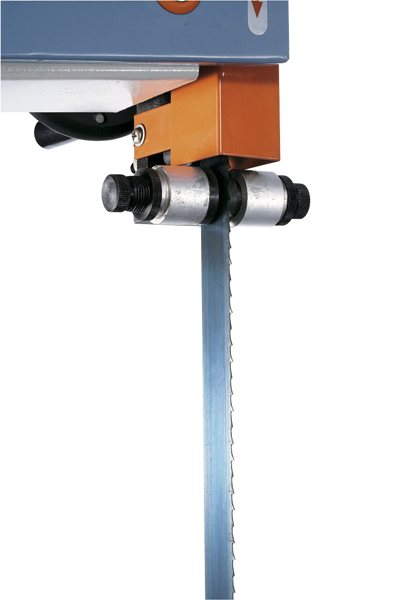

- Upper and lower precision roller guiding for precise cuts
- High quality V-belt for optimal power transmission
- Including limit switch for automatic shut-down at opening of the upper blade covers
Standard accessories Bernardo wood bandsaw HBS 510 - 230 V:
- Bandsaw blade
- Rip fence with loupe
- Mitre fence
- Cast iron flywheels
- 3-roller bandsaw blade
- Push stick
- Tools
Technical specifications Bernardo wood bandsaw HBS 510 - 230 V:
| Cutting width | 480 mm |
| Cutting height | 305 mm |
| Blade dimension | 3500 x 25 x 0,62 - 3,5 TPI |
| Blade width | 10 - 40 mm |
| Cutting speed | 600 m/min |
| Table size | 490 x 590 mm |
| Table height | 940 mm |
| Tilting table | 0° to 45° |
| Dust extraction outlet | 100 mm |
| Motor power output S1 100% | 2,2 kW (3,0 HP) |
| Motor power input S6 40% | 3,0 kW (4,0 HP) |
| Voltage | 230 V |
| Machine dimension (B x T x H) | 930 x 880 x 1865 mm |
| Weight approx. | 220 kg |
