Bernardo wood bandsaw HBS 400 - 400V
Properties Bernardo wood bandsaw HBS 400
- Big dimensioned working table with grounded surface and T-slot

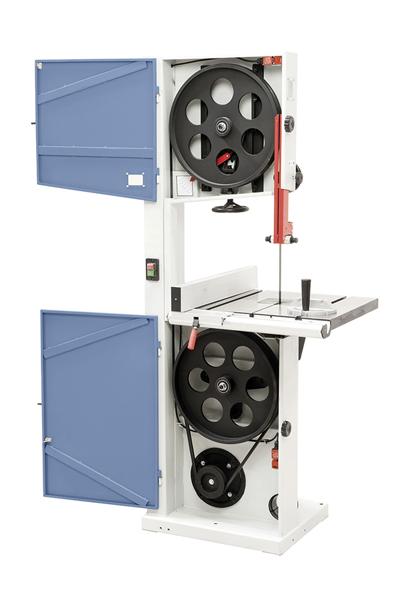

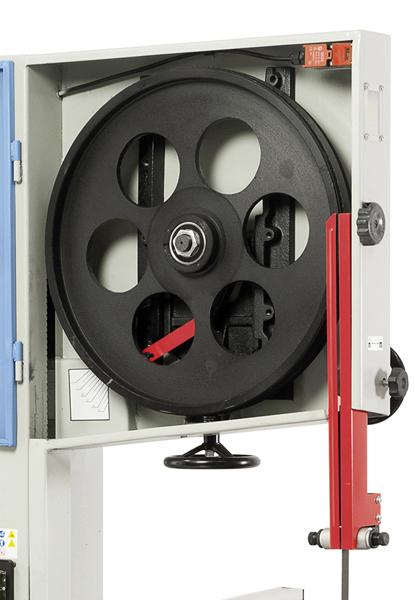

- Massive cast iron fl ywheels for smooth run

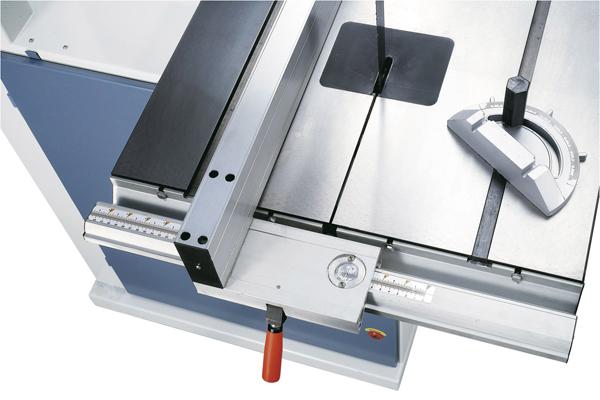

- Easy adjustable aluminium rip fence with quick clamping system and integrated loupe
- Tiltable working table for mitre cuts from 0° to 45°
- Upper and lower precision roller guiding for precise cuts
- High quality V-belt for optimal power transmission
- Including limit switch for automatic shut-down at opening of the upper blade covers
Standard accessories Bernardo wood bandsaw HBS 400:
- Bandsaw blade
- Rip fence with loupe
- Mitre fence
- Cast iron flywheels
- 3-roller bandsaw blade guiding
- Push stick
- Tools
Technical specifications Bernardo wood bandsaw HBS 400:
| Cutting width | 380 mm |
| Cutting height | 220 mm |
| Blade dimension | 2950 x 16 x 0,52 - 4 TPI |
| Blade width | 6 - 20 mm |
| Cutting speed | 600 m/min |
| Table size | 410 x 500 |
| Table height | 940 mm |
| Tilting table | 0° to 45° |
| Dust extraction outlet | 100 mm |
| Motor power output S1 100% | 1,5 kW (2,0 HP) |
| Motor power input S6 40% | 2,1 kW (2,8 HP) |
| Voltage | 400 V |
| Machine dimension (B x T x H) | 760 x 880 x 1705 mm |
| Weight approx. | 140 kg |
