Bernardo wood bandsaw HBS 400 - 230V
Properties Bernardo wood bandsaw HBS 400
- Big dimensioned working table with grounded surface and T-slot

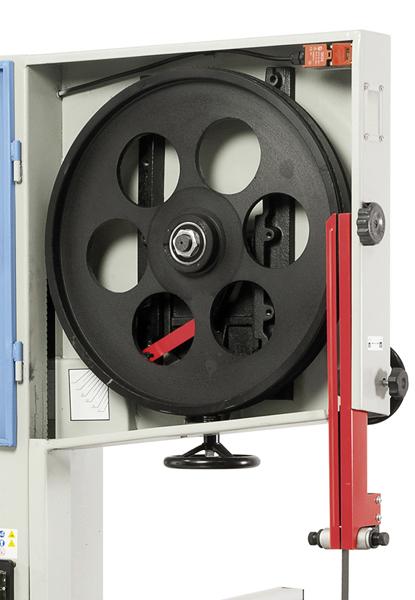

- Massive cast iron fl ywheels for smooth run
- Easy adjustable aluminium rip fence with quick clamping system and integrated loupe
- Tiltable working table for mitre cuts from 0° to 45°
- Upper and lower precision roller guiding for precise cuts
- High quality V-belt for optimal power transmission
- Including limit switch for automatic shut-down at opening of the upper blade covers
Standard accessories Bernardo wood bandsaw HBS 400:
- Bandsaw blade
- Rip fence with loupe
- Mitre fence
- Cast iron flywheels
- 3-roller bandsaw blade guiding
- Push stick
- Tools
Technical specifications Bernardo wood bandsaw HBS 400:
|
Cutting width |
380 mm |
|
Cutting height |
220 mm |
|
Blade dimension |
2950 x 16 x 0,52 - 4 TPI |
|
Blade width |
6 - 20 mm |
|
Cutting speed |
600 m/min |
|
Table size |
410 x 500 |
|
Table height |
940 mm |
|
Tilting table |
0° to 45° |
|
Dust extraction outlet |
100 mm |
|
Motor power output S1 100% |
1,5 kW (2,0 HP) |
|
Motor power input S6 40% |
2,1 kW (2,8 HP) |
|
Voltage |
400 V |
|
Machine dimension (B x T x H) |
760 x 880 x 1705 mm |
|
Weight approx. |
140 kg |
