Bernardo wood bandsaw HBS 360
Properties Bernardo wood bandsaw HBS 360
- Serially with 2 cutting speeds, ideal for different materials and applications
- Buckling resistant, solid sheet metal construction
- Cast iron working table with tilting device (up to 45°)
- Serially with precision roller guide over and under the table
- Aluminium die casting flywheels with special rubber coating for a long life span of the bandsaw blades
- Including rip fence and both-sided tiltable mitre fence
- Solid machine stand out of sheet metal for a safe stand at work
- Poly-V-belt drive for an optimal power transmission
Standard accessories Bernardo wood bandsaw HBS 360:
- Bandsaw blade
- Rip fence with loupe
- Mitre fence
- Ball bedded precision bandsaw blade guiding
- LED working light
- Push stick
- Stand
Technical specifications Bernardo wood bandsaw HBS 360:
|
Cutting width |
345 mm |
|
Cutting height |
210 mm |
|
Blade dimension |
2560 x 12,7 x 0,5 - 4 TPI |
|
Blade width |
6 - 25 mm |
|
Cutting speed |
370 / 800 m/min |
|
Table size |
545 x 515 mm |
|
Table height |
1020 mm |
|
Tilting table |
0° to 45° |
|
Dust extraction outlet |
100 mm |
|
Motor power output S1 100% |
1,1 kW (1,5 HP) |
|
Motor power input S6 40% |
1,5 kW (2,0 HP) |
|
Voltage |
230 V |
|
Machine dimension (W x D x H) |
800 x 700 x 1700 mm |
|
Weight approx. |
70 kg |

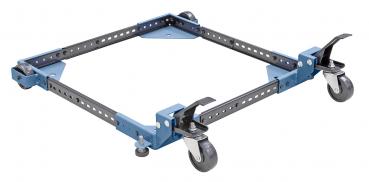

.jpg "Preview: Bernardo MB 230 Universal undercarriage")
