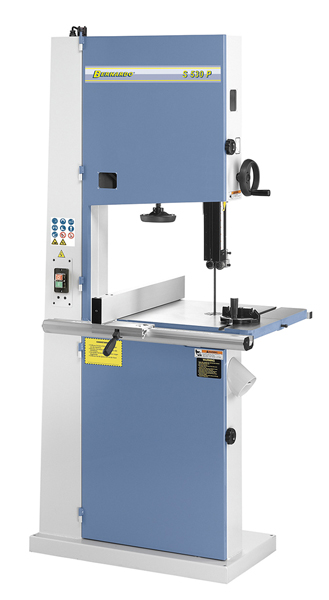

The extremely proven S 530 P wood band saw is equipped with two speeds as standard, allowing optimum adjustment to the material in question. The cutting height is adjusted by means of a handwheel and can be read precisely on a mm scale. For precise work, the saw blade run can be checked via a viewing window on the front.
Features Bernardo S 530 P wood band saw
- Torsion-free machine body guarantees smooth and precise running
- Large dimensioned saw table made of grey cast iron, tiltable from -10° to +45
- Two suction nozzles (100 mm) as standard for optimum chip extraction
- Cutting height adjustment by hand wheel via toothed rack with mm scale
- Easily adjustable longitudinal fence made of aluminium with quick-clamp system and integrated magnifying glass
- Inspection window at the front for checking the saw blade run
- Easy saw blade change with quick-release lever, the basic setting of the drive wheel is not changed in the process
Scope of delivery Bernardo S 530 P wood band saw
- Saw band
- Longitudinal fence with magnifying glass
- Mitre fence
- Ball bearing mounted precision roller guide
Available special accessories Bernardo wood band saw S 530 P
- Saw band 3865 x 19 x 0,6 mm (Art.No.:11-1032)
- Universal trolley UF 300 (Art.No.:56-1070)
- Linear laser device (Art.No.:11-4455)
Technical data Bernardo wood band saw S 530 P
|
Cutting width
|
516 mm
|
|
Cutting height
|
310 mm
|
|
Saw blade length
|
3865 mm
|
|
Cutting speed
|
485 / 1037 m/min
|
|
Table dimension
|
535 x 530 mm
|
|
Table height
|
945 mm
|
|
Saw table inclination
|
-10° to +45°
|
|
Suction connection Ø
|
2 x 100 mm
|
|
Diameter of the rollers
|
530 mm
|
|
Motor output power S1 100%
|
1.5 kW (2.0 hp)
|
|
Motor input power S6 40%
|
2.1 kW (2.8 hp)
|
|
Machine dimension (W x D x H)
|
1020 x 800 x 2040 mm
|
|
Voltage
|
400 V
|
|
Weight approx.
|
206 kg
|
